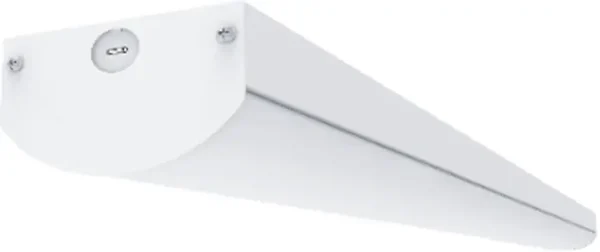

Linear Stairwell Fixture

From $200

Product Overview

The ATG DUO Stairwell LED Fixture is a versatile lighting solution designed for stairwells and passageways in commercial and industrial applications. Available in both linear (LSW) and curved (LSC) models, these commercial light fixtures offer selectable wattage and color temperature settings, providing flexibility and efficiency for various lighting needs.


Key Features

– Selectable wattage and CCT (Color Correlated Temperature) settings

– Available in 2′, 4′, and 8′ lengths (LSW model)

– Available in 2′ and 4′ lengths (LSC model)

– 0-10V dimming capability (0% to 100%)

– High efficacy up to 143.9 lm/W

– Curved design for ceiling-to-wall installations (LSC model)

– Optional concealed motion sensor and emergency battery backup

– Frosted diffuser (standard) for glare reduction


Certifications and Compliance

– DLC (DesignLights Consortium) Qualified

– UL Listed

– RoHS Compliant

– IP20 Rated


Technical Specifications

– Input Voltage: 100-277V (2′ and 4′ models), 100-347V (8′ model)

– Wattage Range: 10W to 80W (depending on model and length)

– CCT Options: 3000K, 4000K, 5000K (selectable)

– CRI: 80+

– L70 Rated Life: >216,000 hours

– Operating Temperature: -13°F to 104°F (-25°C to +40°C)

– Housing: Fabricated metal (LSW), Die-cast aluminum and sheet metal (LSC)

– Finish: White (standard)



– Stairwells

– Hallways

– Office spaces

– Educational facilities

– Industrial and distribution centers

– Healthcare facilities


Customization Options

– Selectable wattage and CCT settings

– Optional occupancy sensors (various models available)

– Emergency battery backup options

– Wireless control systems integration

– Clear or frosted lens options



ATG Electronics offers an industry-leading 10-year limited warranty on these fixtures, subject to terms and conditions.


Ordering Information

To order, use the following format:

[Series]-[Length]-[Wattage]-[Selectable CCT]-[Lens]-[Options]

Example: LSW-2FT-30-T1-F-SL

For specific options and accessories, please refer to the detailed product catalog or contact an ATG sales representative.


Additional Information

– Luminaire Level Lighting Control (LLLC) and Local Area Lighting Control (LALC) options available

– Stand Alone Fixture Control (SAFC) accessories compatible

– Detailed photometric data available upon request

– Easy installation with included mounting hardware

– Energy-efficient solution for upgrading existing lighting systems
