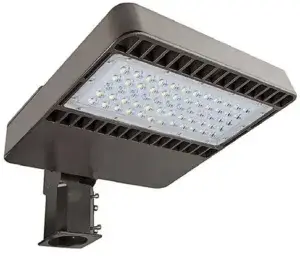

The NBAL LED Area Light series by NebuLite Technology Inc. represents the pinnacle of exterior illumination solutions. Engineered for versatility and durability, this state-of-the-art luminaire is designed to excel in diverse outdoor environments. With its sleek, low-profile design and high-performance capabilities, the NBAL series is the ideal choice for discerning commercial clients seeking reliable, efficient, and aesthetically pleasing outdoor lighting solutions.
Key Features
– Die-cast aluminum housing for superior durability
– High-efficiency professional-grade LEDs
– Stylish low-profile body minimizing wind load
– Corrosion-resistant polyester powder coat finish
– IP65 rating for excellent weather resistance
– Polycarbonate lens for optimal light distribution
– Advanced thermal management system
– Multiple mounting options for versatile installation
– Energy-saving control options available
Certifications and Compliance
– UL Listed
– DLC (DesignLights Consortium) Certified
– CE Marked
– RoHS Compliant
– FCC Certified
– California Title 24 Compliant
Technical Specifications
– Input Voltage: 100-277V or 277-480V
– Input Frequency: 50/60 Hz
– Wattage Options:
– Selectable: 25W-48W-80W, 100W-150W-200W, 200W-240W-300W
– Fixed: 400W, 500W, 600W
– Efficacy: Up to 130 lm/W
– Color Rendering Index (CRI): >70
– Color Temperature Options: 3000K, 4000K, 5000K
– Rated Lifespan: 100,000 hours (L70)
– Power Factor: >0.95
– Operating Temperature Range: -22°F to 122°F (-30°C to 50°C)
– Light Distribution Patterns: Type III, Type IV, Type V
Applications
The NBAL LED Area Light is ideal for a wide range of commercial and industrial outdoor lighting applications, including:
– Parking lots
– Car dealerships
– Shopping malls and plazas
– Gardens and landscaped areas
– Roadways and streetscapes
– General area lighting for commercial and industrial sites
Customization Options
– Wattage Selection: Choose from various wattage options to suit your specific lighting needs
– Color Temperature: Select from 3000K (warm white), 4000K (neutral white), or 5000K (cool white)
– Mounting Options:
– Square Pole Arm Mount
– Round Pole Arm Mount
– Slip-Fitter Mount (2 3/8″ or 3″)
– Trunnion Mount
– Wall Mount
– Control Systems:
– 0-10V Dimming
– 12V Auxiliary Power (available for 50W & 80W models)
– Bluetooth Mesh Control
– Twist-lock Dusk to Dawn Photocell
– Bi-level Occupancy Sensor
– Finish Colors: Bronze (standard), White, Black, Silver, or custom colors upon request
Warranty
5-year warranty
Ordering Information
To place an order or request a quote, please use the following format:
NBAL-[Wattage]-[CCT]-[Voltage]-[Optics]-[Mount]-[Options]
Example: NBAL-100W-40-HV-T3-ARMT2-PSJL
– Wattage: 25W-48W-80W, 100W-150W-200W, 200W-240W-300W, 400W, 500W, or 600W
– CCT: 30 (3000K), 40 (4000K), or 50 (5000K)
– Voltage: V (100-277V) or HV (347-480V)
– Optics: T2, T3, T4, or T5
– Mount: SF (2 3/8″ Slip Fitter), SF2 (3″ Slip Fitter), ARMT1 (Square Pole), ARMT2 (Round Pole), WM (Wall Mount), or TB (Trunnion Bracket)
– Options: PSJL (Photocell Sensor), LRD-309S (Line Voltage Smart DIM OCC), PR7 (Photocell Receptacle), SDXX (Surge Protector)
