High Bay Light Fixtures-Oakled

From $300

Product Overview

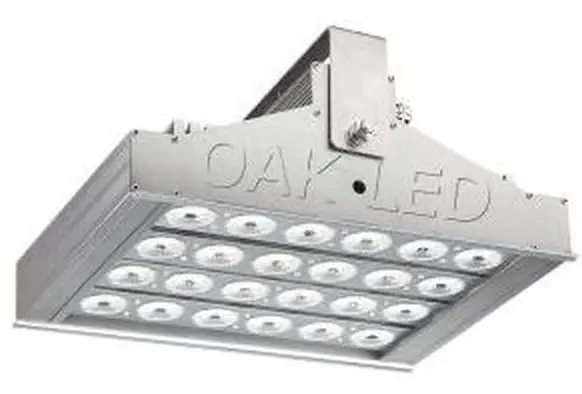

The OAK-HBL-400W LED High Bay Light is a high-performance, energy-efficient lighting solution designed for commercial and industrial applications. Equipped with Cree LED chips, this high bay light delivers exceptional luminous efficacy of 170 lumens per watt, resulting in significant energy savings compared to traditional HPS/MH lighting systems.


Key Features

– High-quality Cree LED chips with LM-80 certification

– Impressive efficacy of 170 lumens per watt

– Rated life of 80,000 hours

– Wide operating temperature range: -40°C to 60°C (T6 temperature code)

– RoHS compliant and free of toxic chemicals

– 70-80% energy savings compared to HPS/MH lighting

– Highest ingress protection rating: IP67

– Wide AC input range: 90-305V AC

– High power factor: ~0.98

– Low total harmonic distortion: <15%

– Surge protection: IEC/EN 61000-4-5

– Easy and simple plug-and-play installation

– Adjustable mount angle with wall mount/ceiling mount bracket

– Impact grade: IK08


Certifications and Compliance

– CE certified

– RoHS certified

– C-Tick certified

– SAA certified (SAA162025)

– ETL certified

Technical Specifications

– Model No.: OAK-HBL-400W

– Total Power: 400W

– Beam Angle Options: 15°, 25°, 40°, 60°, 90°

– LED Array: 10 x 4

– Nominal Lumens: 68,000 lm

– System Efficacy: 170 LM/W

– CRI: >80

– Power Factor: >0.98

– THD: <15%

– IP Code: IP67



The OAK-HBL-400W LED High Bay Light is suitable for a wide range of commercial and industrial applications, including:

– Warehouses

– Manufacturing facilities

– Distribution centers

– Retail stores

– Sports facilities

– Exhibition halls


Customization Options

– Housing: Special purity aluminum

– Lens: Super clear PC material with anti-glare design

– Light Color Options: 2700K-6500K

– Body Color: Silver, white, or tailored color

– Bracket: Stainless steel (304/316)



The OAK-HBL-400W LED High Bay Light comes with a 5-year warranty, ensuring long-lasting performance and peace of mind for customers.


Ordering Information

To order the OAK-HBL-400W LED High Bay Light or to request more information, please contact our sales team. Provide the desired quantity, beam angle, light color temperature, and any customization requirements, and our team will assist you in placing your order.

*Note: Total power consumption may vary due to installation location, and actual product may differ from the picture shown.
