From $350
Product Overview

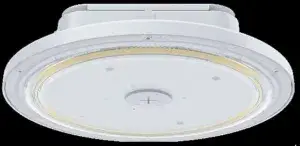

The DualGlow UP & DOWN LED Parking Garage Light represents the latest in commercial lighting technology, offering bi-directional illumination specifically engineered for parking structures. With adjustable wattage from 30W to 100W and selectable color temperatures, this versatile fixture delivers optimal lighting performance while maximizing energy efficiency.
Key Features
– Dual-direction illumination (up and down lighting)
– Adjustable wattage: 30W/50W/75W/100W
– Selectable CCT: 3000K/4000K/5000K
– Superior efficiency up to 155 lumens per watt
– Wide 160° beam angle
– 0-10V dimming capability
– Integrated sensor base for motion/occupancy controls
– Flicker-free operation
– ADC12 die-cast aluminum housing for optimal heat dissipation
Certifications and Compliance
– ETL Listed
– IP65 rated for dust and water resistance
– Suitable for wet locations
– 4kV line-line, 6kV line-earth surge protection
– Input voltage: 120-277VAC (50/60Hz)
Technical Specifications
– Lumen output: Up to 15,500 lumens
– CRI: ≥70
– Power factor: >0.9
– Operating temperature: -30°C to 45°C
– LED type: Lumiled 2835
– LED quantity: 360 PCs (down) + 36 PCs (up)
– Dimensions: Ø322x84mm (Ø12.7″x3.3″)
– Weight: 2.6kg (5.73 lbs)
Applications
– Parking garages and structures
– Underground parking facilities
– Loading docks
– Covered walkways
– Industrial facilities
– Storage areas
Customization Options
– Optional motion sensor (SR-H30-01)
– PIR sensor integration (HN074-01VRPH)
– Emergency backup options:
– EM-C02-01: 8W1.5H emergency backup (120-277V)
– EM-C02-02: 8W1.5H emergency backup (120-347V)
Warranty
5-year limited manufacturer warranty covering defects in materials and workmanship
Ordering Information
– SKU: 156993
– Model: CP02-100WS-3CS-U
– Package dimensions: 14.76″ x 14.76″ x 5.51″
– Individual unit packaging with complete installation hardware
– Bulk ordering available for commercial projects
Installation Notes
– 3/4″ NPT conduit entry for pendant mounting
– Pre-wired for quick installation
– Color-coded AC cords for easy connection
– Tool-less access for maintenance
– Mounting height recommendation: 3-5m
