Product Overview

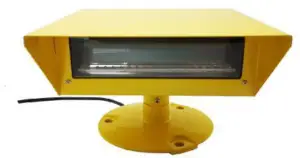

The AH-HP-F1 LED Heliport Surface Flood Light is an advanced illumination solution designed specifically for helipad and helideck environments. This high-performance flood light provides uniform, glare-free lighting crucial for safe nighttime helicopter operations. By enhancing surface visibility, it improves pilots’ depth perception, allowing for more accurate altitude estimation during landing maneuvers. The AH-HP-F1 combines cutting-edge LED technology with robust construction to deliver reliable, energy-efficient lighting for demanding aviation applications.
Key Features
– High-intensity, energy-efficient LED technology
– Glare-free illumination for enhanced safety
– 90° horizontal beam spread for optimal coverage
– Low-profile design (less than 25cm height) with frangible mounting
– Custom lens optics specifically designed for helipad operations
– Powder-coated stainless steel enclosure for superior weather resistance
– 25-30 meter irradiation distance
– Steady burning light characteristic
– 24-hour continuous operation capability
– Ultra-long LED lifespan exceeding 100,000 hours
Certifications and Compliance
– ICAO Annex 14 Volume II Heliports 5.3.9
– FAA AC 150/5390-2B Heliport Design Guide
– CAP 437 compliant
Technical Specifications
– Light Source: CREE Ultra high intensity LED
– Emitting Color: White
– Light Intensity: >10 cd/m²
– Operating Voltage: 110-240VAC, 48VDC, 24VDC (other options available)
– Power Consumption: 30W (other options available)
– Dimensions: 230mm × 230mm × 165mm (overall size)
– Installation Size: 140mm × 140mm × 12mm
– Weight: 2.4kg
– Operating Temperature Range: -55°C to 70°C
– Humidity Tolerance: 0% to 100%
– Wind Resistance: Up to 80 m/s
– Waterproof Rating: IP66
– Product Life Expectancy: ≥10 years
Applications
– Helipads
– Heliports
– Helidecks (offshore platforms)
– Emergency medical service (EMS) landing areas
– Corporate and private helicopter facilities
Customization Options
– Infrared LED compatibility for Night Vision Goggles (NVG) operations
– VHF pilot to ground remote control integration
– Solar power system adaptation
– Custom power output options
Warranty
2-year warranty
Ordering Information
To place an order or request a quote for the AH-HP-F1 LED Heliport Surface Flood Light, please contact our sales team with the following information:
- Desired quantity
- Preferred operating voltage
- Power output requirement (if different from standard 30W)
- Any additional customization needs (e.g., NVG compatibility, remote control, solar power)
Installation and Maintenance
– Easy installation with frangible mounting points
– Minimal maintenance required due to long LED lifespan and durable construction
– Weather-resistant design for reduced upkeep in harsh environments
Safety Features
– Glare-free illumination to prevent pilot disorientation
– Frangible design to minimize potential damage to aircraft in case of contact
– High visibility output for enhanced safety during low-light conditions
Environmental Considerations
– Energy-efficient LED technology reduces power consumption and carbon footprint
– Long lifespan minimizes waste and replacement frequency
– Options for solar power integration for eco-friendly operations
The AH-HP-F1 LED Heliport Surface Flood Light represents a state-of-the-art solution for heliport illumination, offering unparalleled performance, durability, and efficiency. Its specialized design ensures optimal visibility for pilots while meeting the strictest international aviation standards. By investing in the AH-HP-F1, operators enhance the safety and functionality of their heliport facilities while benefiting from low maintenance costs and long-term reliability.
