From $600
Product Overview

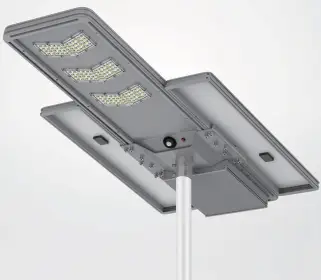

The Solway AC Series is an advanced all-in-one solar street lighting solution designed for high-performance illumination of large roadways and urban areas. Featuring an innovative aircraft carrier-shaped design, this series combines cutting-edge solar technology with powerful LED output to provide sustainable, cost-effective lighting for commercial and municipal applications. Available in three models – AC-12, AC-15, and AC-18 – this series offers scalable solutions for various installation heights and lighting requirements.
Key Features
– All-in-one integrated design for simplified installation
– High-efficiency monocrystalline silicon solar panels
– LiFePO4 battery technology for extended lifespan
– Replaceable battery pack for long-term serviceability
– Unique integrated arrow-shape lens for improved illumination uniformity
– MPPT controller for optimized solar charging
– Type III and Type IV light distribution options
– IoT-ready with smart control system compatibility
– Aircraft carrier-inspired design for enhanced solar conversion
Certifications and Compliance
– IP65 rated for dust and water resistance
– Compliant with international street lighting standards (specific certifications to be confirmed with manufacturer)
Technical Specifications
| Model | AC-12 | AC-15 | AC-18 |
|———–|———-|———-|———-|
| Lumens | 13000 lm | 16800 lm | 20000 lm |
| LED Power | 100W | 150W | 180W |
| Battery | 768 WH | 921.6 WH | 1228.8 WH|
| Install Height | 8-9m | 8-10m | 9-12m |
– LED Chip: 5050
– Color Temperature: 4000-5700K
– Controller: MPPT
– Beam Angle: Type III & Type IV
– Backup Time: 3 nights
– Operating Temperature: -20°C to 60°C
– Charging Time: 7-9 hours
– Upper Pole Diameter: 60mm
Applications
– Highway and large road illumination
– Urban street lighting
– Parking lot lighting
– Campus and industrial park lighting
– Commercial area lighting
– Public space illumination
Customization Options
– Working modes: Time control (default) or PIR sensor mode
– Light distribution patterns: Type III or Type IV
– IoT integration for remote monitoring and control
– Custom lighting schedules and dimming profiles
Warranty
3-year warranty on all components
IoT Smart Control System
Optional IoT integration offers:
– Remote monitoring and control of individual lamps
– Wireless network management
– Malfunction detection and reporting
– Energy consumption tracking
– Data analysis for optimized performance
Installation
– Simple pole-mount installation (60mm upper pole diameter)
– No wiring or trenching required
– Adjustable tilt for optimal solar panel positioning
Ordering Information
To place an order or request a quote, please provide the following information:
- Model number (AC-12, AC-15, or AC-18)
- Quantity required
- Desired working mode (time control or PIR sensor)
- Light distribution preference (Type III or Type IV)
- IoT integration requirements (if any)
Project Cooperation Process
- Customer requirement survey
- Lighting design proposal
- Quick quotation
- Sample testing
- Project bulk order placement
- Project execution
- After-sales support
