Product Overview

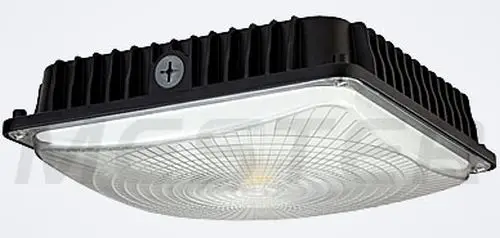

The LightingX U-LPCN LED Low Profile Canopy Light is a durable, high-efficiency lighting solution designed for parking garages, covered walkways, underpasses, tunnel roads, hallways, security lighting, and other low-ceiling commercial and industrial applications. Its larger 12″ × 12″ footprint provides broad, uniform illumination, while an anti-glare polycarbonate lens helps reduce harsh glare in low-mounting-height environments.
Built with a die-cast aluminum housing, marine-grade powder-coated finish, and high-efficiency heat sink, this LED low-profile canopy light is IP67 rated for wet locations and designed for demanding indoor and outdoor environments. Available from 28W to 90W with up to 11,880 lumens, the U-LPCN delivers up to 130 lumens per watt and offers 0–10V dim-to-off control, optional photocell, motion and Bluetooth sensors, pendant mounting, high-voltage configurations, and emergency backup options.
Key Features
– High efficacy of 130 lm/W
– Long L70 life of 150,000 hours
– IP67 rating for excellent protection against dust and water
– Die-cast aluminum construction with a bronze finish
– Polycarbonate lens for durability
– 0-10V dimming capability
– Wide operating temperature range: -40°F to 130°F (-40°C to 54°C)
– Philips LED chips for reliable performance
Certifications and Compliance
– UL listed
– DLC 5.0 qualified (select models)
– FCC certified
– CE marked
– RoHS compliant
Technical Specifications
– Wattage options: 28W, 40W, 60W, 90W
– Color temperature options: 3000K, 4000K, 5000K
– Lumen output range: 3,484 – 11,880 lumens
– Input voltage: 100-277V
– Frequency: 50/60 Hz
– Power factor: 0.99
– Maximum THD: 15%
– CRI: 80+
Applications
– Warehouses
– Low ceiling areas
– Hallways
– Parking garages
– Underpasses
– Tunnels
Customization Options
– Additional knockout holes available on all 4 sides upon request
– Optional 3/4″ threaded pendant adaptor
– Compatible with Phenix Internal Emergency Inverter (18470X-2)
Warranty
5-year wrap-around warranty
Ordering Information
Model number format: U-LPCN-[Wattage]-[Color Temperature]
Example: U-LPCN-60-40 (60W, 4000K)
Installation and Maintenance
– Easy installation with included mounting plate
– Minimal maintenance required
– Periodic cleaning with mild, non-abrasive glass cleaner recommended for optimal performance
Additional Notes
– 4000K and 5000K models in 100-277V are stocked locally (check for ETAs)
– Compatible with various controls and integrations
– Dimensions: 12″ x 12″ x 3.94″ (304mm x 304mm x 100mm)
– Weight: 6 lbs (2.7 kg)
