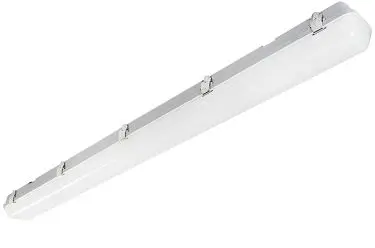

LED Vapor Tight Linear Lighting-Altech-U-VT4

From $200

Product Overview

The U-VT4 LED Vapor Tight is a high-performance, industrial-grade lighting solution designed for low to medium mounting heights. This fixture is ideal for applications where dirt, dust, humidity, moisture, and cold temperatures are present. The U-VT4 can be easily pendant or flush mounted, making it suitable for a wide range of commercial and industrial settings.



Key Features

IP67 rated for protection against dust and water ingress

– Durable aluminum and polycarbonate construction

– Frosted polycarbonate lens for even light distribution

– Long-lasting performance with an L70 life of 70,000 hours

– High efficacy of 130 lm/W for energy efficiency

– 0-10V dimming capability for flexible lighting control

– Wide operating temperature range from -40°F to 130°F (-40°C to 54°C)

– Philips LED chips for reliable, high-quality illumination

– 2.5′ whip length for easy installation



Certifications and Compliance

– UL listed

– DLC 5.1 qualified (select models)

– FCC compliant

– CE certified

– RoHS compliant

Technical Specifications

– Input Voltage: 100-277V

– Power Factor: 0.99

– Frequency: 50/60 Hz

– Max THD: 13%

– CRI: 80+

– Finish: Gray



Applications

– Freezers and coolers

– Toll booths

– Pathways

– Parking garages

– Security lighting

– Tunnels



Customization Options

– Available in 40W and 60W models

– Color temperature options: 3000K, 4000K, and 5000K

– Compatible with Phenix Internal Emergency Inverter (18470X-2) (optional)

– Universal stainless steel mounting bracket available



Warranty

– 5-year warranty



Ordering Information

| Ordering/DLC # | Wattage | CCT     | Lumens   | Equivalent |

|—————-|———|———|———-|————|

| U-VT4-40-30    | 40W     | 3000K   | 5,200 lm | 144W FL    |

| U-VT4-40-40    | 40W     | 4000K   | 5,360 lm | 144W FL    |

| U-VT4-40-50    | 40W     | 5000K   | 5,520 lm | 144W FL    |

| U-VT4-60-30    | 60W     | 3000K   | 7,500 lm | 216W FL    |

| U-VT4-60-40    | 60W     | 4000K   | 7,740 lm | 216W FL    |

| U-VT4-60-50    | 60W     | 5000K   | 7,980 lm | 216W FL    |



Additional Information

– 4000K and 5000K, 100-277V models are stocked locally; check for lead times on other configurations

– Altech Electronics reserves the right to make periodic improvements to product specifications

– Compatible with various lighting controls and integrations
