From $300
Product Overview

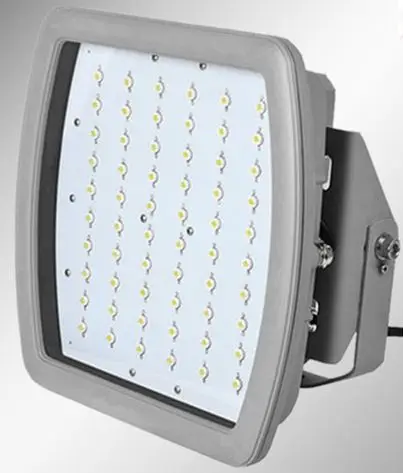

The CES-J Series Hazardous Location LED Flood Light is designed to provide superior illumination in hazardous environments. With a robust housing made of high-strength aluminum alloy and tempered glass, this explosion flood light offers exceptional vibration and impact resistance. Its advanced heat dissipation design ensures long-lasting efficiency and performance, even under extreme conditions.
Key Features
– Curved Fin Shape Design: Maximizes heat dissipation for optimal performance.
– Aluminum Alloy Housing (ADC12): Durable and resistant to harsh conditions.
– Tempered Glass Lens (4mm): Shock and vibration resistant, with over 90% light transmission.
– High-Efficiency LED: LM80 certified, providing 130 lm/W efficiency.
– Reliable LED Driver: Meanwell LED Driver with over 90% efficacy.
– Surge Protection: 4KV/6KV surge protection for enhanced safety.
– High Protection Grade: IP66 rating for superior waterproof and dust-proof performance.
Certifications
– UL844 Certification: Suitable for Class I, Division 2, Groups A, B, C, and D hazardous locations.
– Marine Grade Certification: UL1598A certified for marine applications.
– ATEX and IECEx Certifications: Meets stringent international standards for hazardous locations.
Applications
– Wastewater treatment plants
– Oil and gas refineries
– Petrochemical facilities
– Food and beverage facilities
– Power plants
– Paper mills
– Shipyards
– Chemical processing facilities
– Pharmaceutical plants
– Coal mining plants
Technical Specifications
– Power Options: 20W, 30W, 40W, 60W, 80W, 100W, 120W, 150W, 185W
– Light Efficiency: 130 lm/W
– Voltage-Frequency: 100-277Vac, 50-60Hz
– Color Temperature: 5000K (available from 3000K to 6500K)
– CRI: >70
– Beam Angles: 15°, 30°, 60°, 90°, 120°
– Rated Lifetime: 50,000 hours
– Operating Temperature: -40°C to +40°C
– Entry Size: Standard M25X1.5, optional M26X1.5 or NPT 3/4″-14
– Emergency Backup: Optional 12W emergency power with >90 minutes battery life
Product Variants and Sizes
– CES-J40s: 200*200*147mm, Net Weight 4.0 KG, Gross Weight 5.0 KG
– CES-J100: 300*300*165mm, Net Weight 7.0 KG, Gross Weight 9.0 KG
– CES-J200: 400*400*169mm, Net Weight 10.5 KG, Gross Weight 12.0 KG
Mounting Options
– U Bracket
– Ceiling Mount
– Pendant Mounting
– Pole Mounted (Angle Adjustable)
– Conduit Pole Mounting
– Wall Mounted (45° and 90° options)
– Stanchion Mounted (25°)
– Portable Bracket
Warranty
The CES-J Series LED Flood Light comes with a 5-year warranty, ensuring reliability and peace of mind.
