From $1200
Product Overview

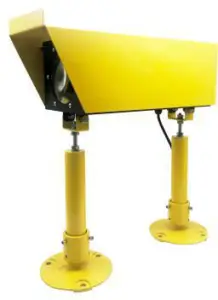

The AH-HP-CHAPI LED CHAPI (Chase Helicopter Approach Path Indicator) is an advanced visual guidance system designed to enhance safety during helicopter approaches to helipads. Manufactured by Anhang Technology, this state-of-the-art system utilizes LED technology to provide pilots with accurate glide slope information during final approach. The system consists of two Light Housing Assemblies (LHAs) that display a combination of white, green, and red lights, indicating whether the aircraft is too high, too low, or within the optimal 6° ±0°15′ glide slope.
Key Features
– LED technology for energy efficiency and low maintenance
– Tri-color indication system (white, green, red) for precise glide slope guidance
– 24-hour continuous operation capability
– Stainless steel body for superior corrosion resistance
– UV-protected polycarbonate lens for light convergence and durability
– Powder-coated bright yellow base for enhanced visibility
– Frangible coupling design to minimize potential damage to helicopters
– IP65 waterproof rating for reliable performance in various weather conditions
– Integrated circuit protection
– Long LED lifespan of over 100,000 hours
Certifications and Compliance
– ICAO Annex 14, Volume I, 6th Edition (2013), clauses 5.3.5.28 – 5.3.5.40, Figure A2-23 Appendix 1, 2.1.1
– FAA AC 150/5390-2B Heliport Design Guide
Technical Specifications
– Light Source: LED
– Colors: Red, Green, White
– Operating Voltage: AC220V
– LED Power Consumption: 50W per unit
– Dimensions: 455 x 520 x 184 mm
– Weight: 10 kg
– Mounting: 140 x M10
– Operating Temperature Range: -35°C to 80°C
– Humidity Tolerance: 10% to 90%
– Wind Speed Resistance: Up to 80 m/s
Applications
– Permanent heliports and helipads
– Temporary and emergency helicopter landing sites
– Offshore and onshore installations
– Hospitals with rooftop helipads
– Military bases
– Search and rescue operations centers
Customization Options
– Solar power system for off-grid installations
– VHF pilot-to-ground remote control
– Wireless remote control for easy operation
– Clinometer for precise angle adjustment
– Custom powder-coated colors for specific visibility requirements
Warranty
Anhang Technology offers a comprehensive warranty covering manufacturing defects and performance issues for the AH-HP-CHAPI LED CHAPI system.
Ordering Information
When ordering, please specify any customization requirements or additional features you may need for your specific application.
Installation and Support
Our team of experts is available to provide guidance on proper installation, calibration, and maintenance of the AH-HP-CHAPI system. We offer comprehensive technical support to ensure optimal performance and longevity of your visual guidance system.
Safety Considerations
The AH-HP-CHAPI system is designed to enhance safety in helicopter operations by providing clear and accurate visual guidance. Proper installation and regular maintenance are crucial for ensuring the system’s reliability and effectiveness.
Environmental Impact
With its energy-efficient LED technology and durable construction, the AH-HP-CHAPI offers a sustainable lighting solution that reduces energy consumption and minimizes maintenance requirements. The optional solar power system further enhances its eco-friendly profile.
Training and Documentation
Anhang Technology provides comprehensive user manuals and training materials to ensure proper operation and maintenance of the AH-HP-CHAPI system. On-site training can be arranged upon request.
By choosing the AH-HP-CHAPI LED CHAPI Heliport Approach Path Indicators, you’re investing in a cutting-edge, reliable, and compliant visual guidance system that meets the highest industry standards for heliport safety. Its versatile design and customization options make it suitable for a wide range of applications, ensuring improved safety and operational efficiency for helicopter approaches in various environments.
