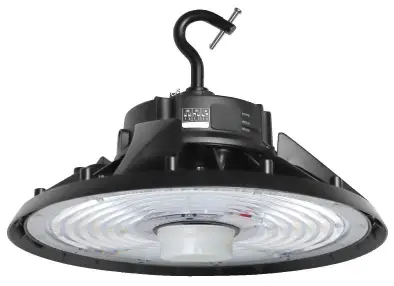

UFO LED High Bay Lights-Arcadia

From $200

Product Overview

The Arcadia 3rd Gen LED UFO High Bay is Beyond LED’s most advanced and feature-rich commercial lighting solution for 2023. Designed for superior performance and energy efficiency, this high bay fixture delivers up to 150 lumens per watt, making it ideal for businesses seeking maximum savings and rebate opportunities. Built to withstand challenging environments, the Arcadia 3rd Gen offers exceptional durability and easy maintenance, perfect for a wide range of commercial and industrial applications.


Key Features

– High efficiency: Up to 150 lumens per watt

– Wattage adjustable: Flexible power options to suit various needs

– Wide input voltage range: 120-277VAC

– Excellent thermal management: Rated for up to 113°F (45°C) ambient temperature

– IP65 rated: Protected against dust and water jets

– Surge protection: Up to 6kV

– Easy maintenance: Unique quick-connect driver to optical assembly interface

– Smart control ready: Compatible with most smart control systems

– Optional features: Motion sensor, remote control, and emergency backup


Certifications and Compliance

– UL Listed

– DLC Listed

– IP65 Rated

Technical Specifications

– Wattage options:

  – 100W / 120W / 150W (SKU 156252)

  – 180W / 200W / 240W (SKU 156253)

– Lumen output: Up to 22,500lm (SKU 156252) or 36,000lm (SKU 156253)

– Color temperature: 5000K

– CRI: >80

– Beam angle: 120° (standard), 60° and 90° options available

– Dimming: 0-10V

– Power factor: >0.9

– Operating temperature: -40°C to 45°C

– LED type: SMD 2835

– Housing material: Aluminum

– Housing color: Black

– Diffuser type: PC (Polycarbonate)



– Warehouses

– Manufacturing facilities

– Gymnasiums

– Outdoor canopies

– Industrial spaces

– Commercial buildings

– Retail environments


Customization Options

– Wattage adjustment: Select from multiple power settings

– Beam angle options: 60°, 90°, or 120°

– Optional accessories: Motion sensor, remote control

– Mounting options: G-hook (included) or U-bracket for ceiling installation



5-year limited warranty


Ordering Information

– SKU 156252: 100W/120W/150W adjustable, up to 22,500 lumens

– SKU 156253: 180W/200W/240W adjustable, up to 36,000 lumens


Installation and Maintenance

– Easy installation with included G-hook or optional U-bracket

– Detailed installation instructions provided

– Minimal maintenance required due to long-lasting LED technology and durable construction
