Product Overview

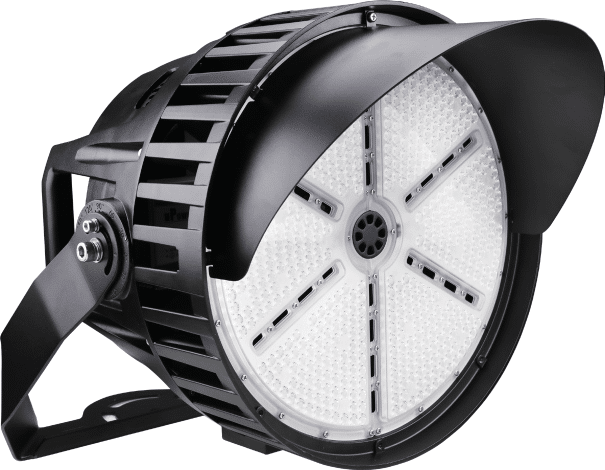

The ATG ULTRA SP8 is a high-output, power-selectable LED luminaire designed for high mast, sports, stadium and other large-area outdoor lighting applications. The series combines multiple wattage platforms, 200–480VAC operation and a broad selection of optical distributions for projects requiring high lumen output and controlled long-distance illumination.
Available platforms range from 400W through 1200W, with selectable wattage settings within each platform. Multiple beam angles allow the fixture to be matched to mounting height, aiming requirements and site geometry.
Key Features
– Power-selectable 400W, 500W, 600W, 750W, 1000W and 1200W platforms
– High-output performance approaching 200,000 lumens on select configurations
– 200–480VAC, 50/60Hz input
– 20°, 30°, 40°, 60°, 80° and 120° optics depending on wattage
– Die-cast aluminum housing with epoxy powder-coat finish
– Polycarbonate lens
– Standard yoke mounting
– Optional slip fitter
– 0–10V dimming
– Standard 10kV surge protection
– Optional 20kV surge protection
– Power factor >0.9
– THD <10%
– IP65 rated for outdoor environments
– IK08 impact rating
– 3G vibration resistant
– Rated operating temperature of -40°F to 113°F
– 100,000+ hour L70 calculated lifetime
– 10-year warranty for main components
Certifications and Compliance
– UL Listed
– Suitable for wet locations
– IP65 rated
– IK08 rated
– 3G vibration resistant
– DLC Premium pending per manufacturer specification sheet dated September 29, 2025
Technical Specifications
Input Voltage: 200–480VAC, 50/60Hz
Wattage Platforms: 400W / 500W / 600W / 750W / 1000W / 1200W
Color Temperatures: 3000K / 4000K / 5000K; RGB option available on specified configurations
CRI: 80
Dimming: 0–10V
Surge Protection: 10kV standard; 20kV optional
Housing: Die-cast aluminum with epoxy powder-coat finish
Lens: Polycarbonate
Mounting: Yoke standard; slip fitter optional
Ingress Protection: IP65
Operating Temperature: -40°F to 113°F
Rated Life: 100,000+ hours L70
Warranty: 10 years on main components
Available Optical Distributions
The SP8 provides multiple beam-angle options for matching the fixture to pole height, setback distance, aiming angle and required coverage.
– 400W / 500W / 600W: 20°, 30°, 40°, 60°, 80° or 120°
– 750W: 20°, 30°, 40°, 60° or 80°
– 1000W / 1200W: 20°, 30°, 40° or 60°
Optical selection should be based on photometric design rather than wattage alone, particularly for high mast installations where mounting height and aiming significantly affect ground-level illumination and uniformity.
High-Output 5000K Performance
Representative 5000K configurations include:
– 600W platform, 40° optic: approximately 100,990 lumens at high setting
– 750W platform, 20° optic: approximately 120,240 lumens at high setting; selectable to 600W at approximately 100,188 lumens
– 750W platform, 40° optic: approximately 122,773 lumens at high setting
– 1000W platform, 40° optic: approximately 162,057 lumens at high setting
– 1200W platform, 40° optic: approximately 197,907 lumens at high setting
Actual lumen output varies by wattage, CCT and optical configuration.
Applications
– High mast lighting
– Ports and container terminals
– Rail yards and intermodal facilities
– Airports and large transportation facilities
– Industrial yards
– Stadiums and athletic fields
– Large outdoor facilities
– Large commercial and municipal sites
– HID and metal-halide high mast retrofit projects
Mounting and Accessories
The SP8 includes a yoke mount as standard. An optional slip fitter is available across the 400W–1200W product family.
Additional accessories include:
– Slip fitter
– Visor
– Laser pointer for fixture aiming
– 120–277VAC photocell
– 480VAC photocell
– 3-pin and 7-pin photocell configurations
– Shorting caps
High Mast Project Assistance
High mast fixtures should be selected according to mounting height, pole configuration, fixture quantity, required light levels, uniformity, optical distribution and aiming rather than wattage alone.
For retrofit projects, provide the existing fixture wattage, mounting height, pole or headframe configuration, voltage and available site plans or photometric requirements.
