From $300
Product Overview

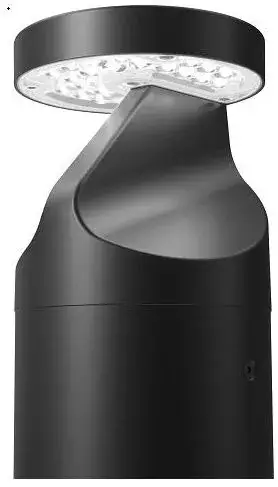

The Baron BL02 is a sophisticated LED bollard light designed for outdoor spaces that demand both aesthetic appeal and superior performance. With its unique curved design and versatile lighting options, Baron LED Bollard is an ideal solution for entryways, pathways, and pedestrian-scale applications, providing both illumination and architectural interest.
Key Features
– Unique curved design for optimal light distribution and aesthetic appeal
– Polished, elegant fixture body with no exposed screws
– Smart control options: PIR sensor and photocell for energy efficiency
– Robust IK10-rated die-casting aluminum body
– Versatile optics systems with Type IV and Type V light distributions
– IP66 rated for excellent dust and water protection
– Available in two power options: 15W and 25W
– Two height options: 0.5m and 1m
Certifications and Compliance
– IP66 rated for ingress protection
– IK10 rated for impact resistance
– Compliant with relevant electrical safety standards (specific certifications not mentioned in the provided documents)
Technical Specifications
– Power Consumption: 15W or 25W (±5%)
– Input Voltage: 220-240 VAC, 50/60 Hz
– Luminous Flux: 1500lm (15W) or 2500lm (25W) (±10%)
– Efficacy: Up to 100lm/W
– Color Temperature: 4000K standard (3000K, 5000K optional)
– Color Rendering Index: Ra80 (Ra70 optional)
– Beam Angle: Type V (R02001) or Type IV (R02002)
– Operating Temperature: -20°C to +45°C (-4°F to 113°F)
– Lifespan: 57,000hrs-L90, 130,000hrs-L80, 210,000hrs-L70
– Surge Protection: 0.5kV line-line, 2kV line-earth / 1kV line-line, 2kV line-earth
Applications
– Gardens
– Pathways
– Sidewalks
– Building entrances
– Pedestrian-scale outdoor areas
Customization Options
– Power options: 15W or 25W
– Height options: 0.5m or 1m
– Color temperature: 3000K, 4000K, 5000K
– Control options: PIR sensor, Photocell, DALI
– Beam angle: Type IV or Type V distribution
Warranty
5-year warranty
Ordering Information
When ordering, please specify:
- Model number (BL02-015 or BL02-025)
- Height (0.5m or 1m)
- Color temperature (3000K, 4000K, or 5000K)
- Control option (PIR sensor, Photocell, or DALI)
- Beam angle (R02001 for Type V or R02002 for Type IV)
Additional Information
– Available in black (RAL 9017) finish
– Mounting kit with anchor bolts included
– Full-assembled and separated packaging options available
– Compatible with backfilled anchor (Code: MT-B01-03) for additional stability
