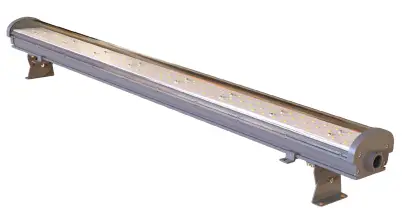

LN-02P, Linear, Class 1 Div 2 full-cutoff, fully shielded

From $300

Product Overview

The CES-EX-LN-02P Series LED Luminaires are high-performance, energy-efficient lighting solutions designed for hazardous locations. These luminaires offer a wide range of wattage options from 30W to 75W, delivering lumens ranging from 3,600 to 9,000. The CES-EX-LN-02P Series is available with three mounting options: ceiling mount, drop mount, and wall mounting, making it suitable for various industrial and commercial applications.


Key Features

– Wide range of wattage options: 30W (≥3,600lm) to 75W (≥9,000lm)

– Three mounting options: ceiling mount, drop mount, and wall mounting

– Wide optics for uniform illumination

– Entry size: 3/4″-14 NPT, M25 X1.5, or M26 X1.5

– Long-lasting performance with 50,000+ hours LED lifespan

– Die-cast aluminum housing for durability

– High transmittance tempered glass lens

– Available in color temperatures ranging from 3000K to 6500K

– CRI ≥70 for accurate color rendering


Certifications and Compliance

Class I, Division 2, Groups A, B, C, and D

– Suitable for damp and wet locations

– UL 844 and UL 1598 (US)

– CSA C22.2 No. 137 and CSA C22.2 No. 250.0 (Canada)

– IP66 rated for dust and water protection

Technical Specifications

– Operating temperature range: -40°C to +55°C (-40°F to 131°F)

– Input voltage: 100-277VAC, 50/60Hz

– 4kV standard surge protection (6kV optional)

– Maximum luminous beam angle: 120°

– Effective Projected Area (EPA): 0.61

– Power factor: >0.95

– LED color stability: Warrantied to shift no more than 200K in CCT over a 5-year period

– LED color uniformity follows ANSI C78.377-2017 guidelines



The CES-EX-LN-02P Series LED Luminaires are suitable for a wide range of hazardous location applications, including:

– Wastewater treatment plants

– Oil and gas refineries

– Drilling rigs

– Petrochemical facilities

– Food and beverage facilities

– Tunnels

– Outdoor wall and stanchion mounted general area lighting

– Areas where flammable vapors and gases are present


Customization Options

The CES-EX-LN-02P Series offers customization options to meet specific project requirements:

– Choice of wattage and lumen output

– Selection of color temperature (3000K to 6500K)

– Three mounting options: ceiling mount, drop mount, and wall mounting



CESP provides a 5 year limited warranty subject to all terms and conditions.

Ordering Information

To order the CES-EX-LN-02P Series LED Luminaires, please refer to the product model table provided in the specification sheet. Contact CESP sales for assistance in selecting the appropriate configuration for your project needs.
