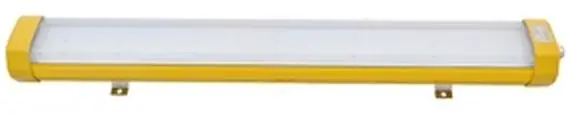

KLE1011 Linear LED Lighting, Class 1 Div 2, - UL 1598 Wet Locations, ATEX certified, DLC Listed

From $200

Product Overview

The KLE1011 Linear LED Lighting is a high-quality, efficient, and reliable lighting solution designed for hazardous locations. This product features a low-profile, lightweight design with a high-quality aluminum housing, making it suitable for various industrial and commercial applications. The KLE1011 series offers multiple wattage options, clear or diffused lens choices, and a range of mounting accessories to suit different installation requirements.


Key Features

– Low-profile, lightweight design with high-quality aluminum housing

– Impact-resistant clear or diffused lens options

– Professional light distribution for uniform illumination

– Single-ended or double-ended feed-through wiring options

– Long-lasting performance with a 50,000-hour lifetime

– Superior color rendering index compared to HPS, LPS, or MV lighting

– Temperature compensation technology for extended life

– Low maintenance costs and over 50% reduction in power consumption


Certifications and Compliance

– UL 1598 Wet Locations

– UL 844 Hazardous Locations

– UL 8750 LED Safety

– CSA C22.2 No. 250.0-08

– IP66 rated

– ATEX certified

– DLC Listed

– CE & RoHS compliant

– IK10 rated

– CNEX certified

– Class I, Division 2, Groups A, B, C & D

– Class II, Division 2, Groups F & G

– Class III.

Technical Specifications

– Operating temperature range: -40℉(-40℃) to 122℉(50℃)

– Wattage options: 36W or 56W

– Operating voltage: 100-277V 50/60Hz

– Available lengths: 2 feet or 4 feet

– Color temperature options: 3000K, 4000K, 5000K, or 6000K

– CRI: 70+

– Lumens per watt: Up to 130 lm/W

– Standard 4KV surge protection



The KLE1011 Linear LED Lighting is suitable for various hazardous location applications, including:

– Oil and gas facilities

– Chemical plants

– Manufacturing facilities

– Warehouses

– Food processing plants

– Refineries

– Other industrial environments requiring reliable, efficient lighting in hazardous areas


Customization Options

The KLE1011 series offers a range of customization options to meet specific project requirements:

– Choice of clear or diffused lens

– Multiple color temperature options

– Various mounting accessories, including pendant pole mount, pendant chain mount, ceiling mount, wall mount, beam clamp mount, and pole mount



The KLE1011 Linear LED Lighting comes with a 5-year warranty, ensuring long-lasting performance and customer satisfaction.


Ordering Information

To order the KLE1011 Linear LED Lighting, please refer to the catalog number logic provided in the specification sheet. Contact our sales team for assistance in selecting the appropriate configuration for your project needs.
