From $350
Download Data Sheet here
Product Overview
The FYS/FYD Series Round Flood Lights represent a breakthrough in hazardous location illumination, engineered specifically for industrial facilities requiring robust, explosion-proof lighting solutions. These premium-grade luminaires combine advanced LED technology with military-grade construction to deliver exceptional performance in the most demanding environments. Available in two distinct series configurations – the compact FYS (20W-80W) for targeted area lighting and the high-output FYD (100W-200W) for expansive coverage – these fixtures provide uncompromising reliability where safety and visibility are paramount.

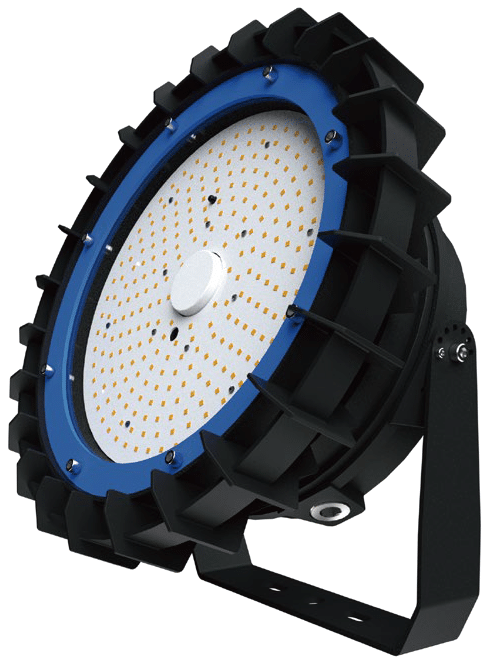

Designed with a distinctive round form factor featuring an innovative heat dissipation architecture, these luminaires maintain optimal thermal management through their signature ribbed aluminum housing with integrated cooling fins. The reinforced die-cast aluminum construction, enhanced with a marine-grade powder coating and distinctive blue accent trim, ensures exceptional durability while maintaining aesthetic appeal in industrial settings.
Key Features
Superior Hazardous Location Protection – Certified for Class I Division 2 (Groups A, B, C, D), Class II Division 2 (Groups F, G), and Class III environments, providing comprehensive protection against explosive gases, combustible dusts, and ignitable fibers commonly found in petroleum refineries, chemical processing plants, grain handling facilities, and textile mills.
Exceptional Energy Efficiency – Achieves industry-leading efficacy of up to 150 lumens per watt, significantly reducing energy consumption by up to 75% compared to traditional HID fixtures while delivering superior light quality and distribution for enhanced workplace safety and productivity.
Advanced Optical Performance – Features precision-engineered tempered glass lenses with customizable beam angles (25°, 60°, 90°, 110°) enabling optimal light distribution for specific application requirements, from narrow spot illumination to wide flood coverage, minimizing shadows and dark spots in critical work areas.
Extreme Environmental Resilience – IP66-rated enclosure provides complete protection against dust ingress and powerful water jets, while IK10 impact resistance rating ensures immunity to mechanical damage from 20-joule impacts, making these fixtures ideal for harsh industrial environments subject to vibration, moisture, and physical stress.
Extended Operational Lifespan – Engineered to deliver L70 performance exceeding 100,000 hours of continuous operation, drastically reducing maintenance requirements and replacement costs while ensuring consistent illumination quality throughout the fixture’s service life.
Integrated Emergency Backup – Optional 90-minute emergency battery backup system ensures continuous illumination during power failures, meeting critical safety requirements for emergency egress and life safety compliance in hazardous locations.
Certifications and Compliance
- UL Listed for hazardous locations per UL 844 and UL 1598
- Class I Division 2 – Groups A, B, C, and D (explosive gas environments)
- Class II Division 2 – Groups F and G (combustible dust environments)
- Class III – Ignitable fibers and flyings
- cULus Certified for Canadian and US markets
- IP66 Rating – Complete dust tight and protected against powerful water jets
- IK10 Rating – Maximum mechanical impact resistance
- RoHS Compliant – Free from hazardous substances
- CE Marked for European conformity
- ISO 9001 manufactured quality standards
Technical Specifications
FYS Series (Compact Configuration)
- Power Options: 20W, 40W, 50W, 60W, 70W, 80W
- Luminous Output: 3,000 – 12,000 lumens
- Input Voltage: 100-277VAC (standard) / 200-480VAC (high voltage)
- Power Factor: >0.95
- Total Harmonic Distortion: <15%
- Color Rendering Index: 70 CRI (standard) / 80 CRI (optional)
- Color Temperature: 3000K, 4000K, 5000K, 5700K available
- Dimensions: 308mm diameter x 166mm height
- Weight: 8-12 kg depending on configuration
FYD Series (High Output Configuration)
- Power Options: 100W, 120W, 150W, 160W, 180W, 200W
- Luminous Output: 15,000 – 30,000 lumens
- Input Voltage: 100-277VAC (standard) / 200-480VAC (high voltage)
- Power Factor: >0.95
- Total Harmonic Distortion: <15%
- Color Rendering Index: 70 CRI (standard) / 80 CRI (optional)
- Color Temperature: 3000K, 4000K, 5000K, 5700K available
- Dimensions: 358mm diameter x 157.4mm height
- Weight: 12-18 kg depending on configuration
Environmental Specifications
- Operating Temperature: -40°F to +149°F (-40°C to +65°C)
- Storage Temperature: -50°F to +176°F (-45°C to +80°C)
- Operating Humidity: 0-95% RH non-condensing
- Altitude Rating: Up to 5,000 meters
- Vibration Resistance: 3G per IEC 68-2-6
Applications
Oil & Gas Industry – Ideally suited for offshore drilling platforms, refineries, petrochemical processing areas, tank farms, loading docks, and pipeline compressor stations where explosive vapors and gases present constant hazards requiring specialized lighting solutions.
Chemical Processing Facilities – Perfect for pharmaceutical manufacturing clean rooms, chemical storage areas, mixing and blending operations, reaction vessels, distillation columns, and laboratory environments requiring precise illumination and hazardous location compliance.
Food & Beverage Processing – Excellent for grain elevators, flour mills, sugar processing plants, brewing facilities, cold storage warehouses, and packaging areas where combustible dusts and washdown requirements demand robust, sealed luminaires.
Mining Operations – Optimal for underground mining tunnels, processing mills, crushing and screening plants, conveyor systems, and material handling areas where dust, moisture, and impact resistance are critical for continuous operation.
Marine & Port Facilities – Designed for shipyards, container terminals, dock cranes, offshore platforms, and coastal installations where corrosive salt air and extreme weather conditions require superior protection and reliability.
Power Generation – Suitable for power plant turbine halls, coal handling systems, natural gas compression stations, transformer yards, and maintenance areas requiring high-output illumination with hazardous location certification.
Customization Options
Mounting Configurations
- Pendant Mount – Suspended installation with adjustable chain or rigid conduit
- Yoke/Trunnion Mount – Adjustable angle mounting for directional lighting
- Ceiling Mount – Direct surface mounting for low clearance applications
- Stanchion Mount – Pole-top mounting for area illumination
- Wall Mount – Side-mounted configuration for perimeter lighting
- Custom Bracket Solutions – Engineered mounting solutions for specific requirements
Optical Enhancements
- Anti-glare shields and louvers for visual comfort
- Specialized lens patterns for asymmetric distribution
- Photocell and motion sensor integration
- Wireless control compatibility (0-10V, DALI, DMX)
- Custom color temperature options (2700K-6500K)
Electrical Options
- Surge protection devices (10kV/20kV)
- Dimming capabilities (0-10V, PWM, DALI)
- Multi-voltage configurations
- Emergency battery backup systems (90/120/180 minutes)
- Integral disconnect switches
Warranty
Comprehensive 5-year limited warranty covering all components including LED modules, drivers, housing, and optical elements against defects in materials and workmanship under normal use conditions. Extended warranty options available up to 10 years with preventive maintenance agreements. Warranty includes:
- Complete luminaire replacement or repair
- Pro-rated coverage for LED depreciation
- 24/7 technical support hotline
- On-site service options available
- Expedited shipping for warranty claims
Ordering Information
Model Nomenclature
FYS-[Wattage]-[Voltage]-[CCT]-[CRI]-[Beam]-[Mount]-[Options] FYD-[Wattage]-[Voltage]-[CCT]-[CRI]-[Beam]-[Mount]-[Options]
Example Configuration
FYS-60W-277V-5000K-80CRI-90D-YK-EM90 (60W FYS Series, 277V, 5000K, 80 CRI, 90° beam, yoke mount, 90-min emergency)
