From $420
Product Overview

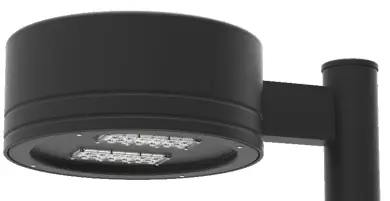

The LED Round Flat Top 3075 by Crystal is a cutting-edge architectural LED area light fixture designed for superior illumination and energy efficiency. This 18″ round flat top fixture features a spider mount post top and wide light distribution, making it an ideal replacement for traditional 400W HPS or MH lamps. With a range of wattage options from 20W to 125W and a high lumen output of up to 16,512lm, this versatile fixture meets diverse lighting needs while significantly reducing energy consumption.
Key Features
– High-performance Philips Lumiled LEDs for optimal efficiency
– Wide light distribution for enhanced area coverage
– Multiple wattage options: 20W, 45W, 65W, 85W, 105W, and 125W
– Cool 5000K color temperature for crisp, clear illumination
– Impressive energy savings of over 66% compared to HID sources
– Extended operating life of over 60,000 hours
– Robust die-cast aluminum housing with hinged front door frame
– Weatherproof design suitable for wet locations
Certifications and Compliance
– UL Listed for wet locations
– RoHS Compliant
– FCC Certified
Technical Specifications
– Voltage: 120-277V, 50/60Hz (480V optional)
– Color Rendering Index (CRI): >70
– Power Factor: >0.9
– Total Harmonic Distortion (THD): <20%
– Operating Temperature Range: -30°C to 60°C (-22°F to 140°F)
– IP Rating: IP65
– Surge Protection: 10kV standard (higher ratings available)
Applications
– Parking lots and structures
– College and university campuses
– Industrial complexes
– Commercial districts
– Residential communities
– Parks and recreational areas
– Walkways and pedestrian zones
Customization Options
– Finish colors: Standard bronze, custom colors available
– Lens options: Clear glass (standard), prismatic glass (optional)
– Mounting adaptors: 3″ round pole (standard), 3″ square pole, 4″ round pole, 4″ square pole
– Control options: Dimming, occupancy sensors, photocell, and wireless controls
– Voltage: 480V option available
Warranty
– 5-year limited warranty on fixture and LED driver
– Extended warranty options available upon request
Ordering Information
To place an order or request a quote, please contact our sales team with the following information:
- Model number: LED Round Flat Top 3075
- Desired wattage
- Quantity required
- Mounting type
- Finish color
- Any additional options or customizations
Contact our sales team for current pricing, volume discounts, and special promotions.
Installation and Maintenance
– Easy installation with direct mounting onto poles
– Minimal maintenance required due to long operating life
– Hinged front door frame for convenient access to internal components
– Detailed installation guide and support available
Sustainability
By choosing the LED Round Flat Top 3075, you’re making a commitment to sustainability:
– Significant reduction in energy consumption
– Lower carbon footprint compared to traditional lighting
– Mercury-free and environmentally friendly design
– Contributes to LEED certification points for green building projects
Why Choose Crystal LED Round Flat Top 3075?
– Industry-leading energy efficiency
– Exceptional light quality and distribution
– Durable construction for long-term reliability
– Versatile application possibilities
– Customizable to meet specific project requirements
– Backed by Crystal’s reputation for excellence in commercial lighting
For more information or to discuss your specific lighting project needs, please contact our expert lighting consultants today.
