Product Overview

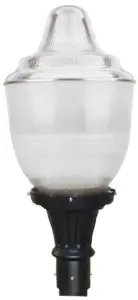

The CLP-Acorn Architectural LED Luminaire is a high-performance outdoor lighting solution designed by Crystal Lighting Corp. This Classic Acorn post top fixture is ideal for various commercial and institutional applications, offering excellent energy efficiency, durability, and customizable options to meet diverse lighting needs.
Key Features
– Energy-efficient: Over 66% energy savings compared to traditional HID light sources
– High-performance Lumiled LEDs for improved lumen maintenance
– Versatile operating temperature range: -30°C to 60°C
– Multiple wattage options: 20W, 40W, 50W, 60W, and 80W
– Two light distribution patterns: Type 3 and Type 5
– Color temperature options: 3000K, 4000K, and 5000K
– Durable construction: Heavy-duty cast aluminum base with powder coat finish
– Wet location rated
– 10kV surge protector included as standard
Certifications and Compliance
[Note: The document doesn’t explicitly mention certifications. It’s recommended to verify with Crystal Lighting Corp. for specific certifications such as UL, ETL, DLC, etc.]
Technical Specifications
– Input Voltage: 120-277V (standard), 480V (optional)
– Color Rendering Index (CRI): 70+
– Lumens per Watt (LPW): Ranges from 119 to 184, depending on the model
– Rated Life (L70): >200,000 hours
– Dimming: 0-10V dimming capable (optional)
– Mounting: Standard over 3″ O.D. tenon or pole (adapters available for other mountings)
– EPA (Effective Projected Area): 2.3
– Weight: 22 LBS
Applications
– Residential exteriors
– Walkways and pathways
– School campuses
– Industrial and commercial spaces
– Parking lots
– Recreational parks
– Perimeter lighting
Customization Options
– Wattage: 20W, 40W, 50W, 60W, 80W
– Light Distribution: Type 3 or Type 5
– Color Temperature: 3000K, 4000K, 5000K
– Voltage: 120-277V or 480V
– Finish: Black, White, Silver, Bronze, Graphite, or Custom
– Cage styles: Two options available
– Fitter styles: Six options available
– Hard top styles: Five options available
– Lens types: Various acrylic and polycarbonate options
Additional Features
– Occupancy sensor (optional)
– Bottom photocell (optional)
– 7-pin photocell receptacle and shorting cap (optional, for hard top only)
– Wireless control capability (optional)
Warranty
10-year/100,000-hour limited warranty
Ordering Information
Use the following format to specify your CLP-Acorn Architectural LED Luminaire:
CLP-ACRN-[Cage]-[Fitter]-[Top]-[Lens]-[Wattage]-[Light Distribution]-[Color Temperature]-[Voltage]-[Finish]-[Options]
Example: CLP-ACRN-CG1-FT1-TP1-LLA-40CLED-T3-30K-MV-BLK-PC
Additional Information
– Proudly manufactured and assembled in the USA
– Crystal Lighting Corp. is committed to design, function, and quality
– For more detailed information or technical support, please refer to the full product brochure or contact Crystal Lighting Corp. directly
