From $400

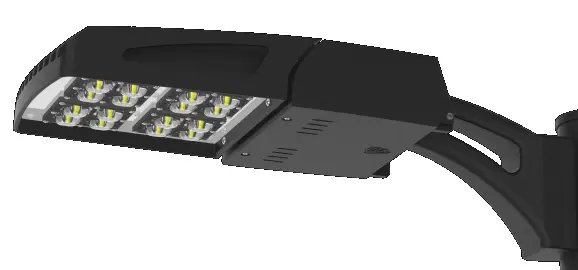

Product Overview
The EROS Area LED Lighting series by Crystal Lighting offers a cutting-edge illumination solution for diverse commercial and outdoor environments. This versatile fixture combines sleek design, superior functionality, and exceptional quality, making it ideal for a wide range of applications. Available in configurations of 1 to 4 modules, the EROS series provides flexible lighting options to meet varying intensity and coverage requirements.
The EROS Area LED Lighting excels in parking lot lighting applications, offering a perfect balance of safety, efficiency, and aesthetics. Its wide range of light distribution options ensures even illumination across vast spaces, eliminating dark spots and enhancing security. The fixture’s adjustable color temperature allows property managers to create a welcoming atmosphere while maintaining excellent visibility. With its robust construction and weather-resistant design, the EROS series withstands the harsh outdoor conditions typical of parking areas, from intense sunlight to heavy rain. The optional smart controls, such as occupancy sensors and photocells, enable adaptive lighting strategies that conserve energy during off-peak hours without compromising safety. Whether you manage a small retail lot or a sprawling corporate campus, the EROS Area LED Lighting provides a scalable solution that enhances the parking experience for visitors while reducing operational costs.
Key Features
– Modular design with 1 to 4 light modules for scalable illumination
– High-efficiency Lumiled LEDs for optimal performance
– Low-profile construction with external heat sink for superior thermal management
– Multiple light distribution patterns: Type 2, 3, 4, and 5
– Customizable color temperatures: 3000K, 4000K, and 5000K
– Robust corrosion-resistant aluminum housing with 3 mil powder coat finish
– IP65 / IP67 rated for excellent weather resistance
– Optional smart controls: occupancy sensors, photocells, and wireless systems
– Energy savings of over 66% compared to traditional HID light sources
Certifications and Compliance
– IP65 / IP67 rated for dust and water protection
– Manufactured and assembled in the USA
– Weather-tight protection (IP66) with silicone gasket
Technical Specifications
– Wattage options: 20W to 200W
– Lumen output: 3,120 to 25,995 lumens
– Efficacy: Up to 156 lumens per watt
– Color Rendering Index (CRI): 70+
– Rated life: >200,000 hours (L70)
– Input voltage: 120-277V (standard) or 480V (optional)
– Operating temperature range: -30°C to 60°C
– Dimming: 0-10V (optional)
Applications
– School campuses
– Storage facilities
– Parking lots
– Recreational parks
– Commercial and industrial areas
– Pedestrian walkways
– Security lighting
Customization Options
– Module configuration: 1, 2, 3, or 4 modules
– Housing color: Black, White, Bronze, Silver, Graphite, or Marine Grade
– Mounting options: 6″ Extruded Arm, Sweep Arm, Slip Fitter, Swivel Bracket, or Wall Mount
– Light distribution: Type 2, 3, 4, or 5
– Color temperature: 3000K, 4000K, or 5000K
– Voltage: 120-277V or 480V
– Add-ons: Occupancy sensor, button photocell, wireless controls, 7-pin photocell receptacle
Warranty
Backed by an industry-leading 10-year/100,000-hour limited warranty, ensuring long-term performance and customer satisfaction.
Ordering Information
To place an order, use the following catalog number format:
ERS-[Modules]-[Wattage]-[Light Distribution]-[Color Temp]-[Voltage]-[Color]-[Mounting]-[Options]
Example: ERS-1M-60CLED-T2-40K-MV-BRZ-SA-OCC
Energy Efficiency
The EROS Area LED Lighting series offers significant energy savings:
– Up to 66% reduction in energy consumption compared to HID sources
– HID equivalent options from 50W HPS to 750W PS
Installation and Support
Our expert team provides comprehensive support, including:
– Installation guidance
– Photometric analysis
– Technical support
– Optional on-site consultation for large-scale projects
Environmental Impact
By choosing the EROS Area LED Lighting, you’re investing in an environmentally responsible solution that reduces energy consumption and carbon footprint while providing superior illumination for your commercial spaces.
The EROS Area LED Lighting series combines innovative design, exceptional performance, and energy efficiency to meet the diverse needs of modern commercial lighting applications. With its modular construction, multiple customization options, and industry-leading warranty, it’s the smart choice for businesses looking to upgrade their outdoor lighting infrastructure.
