Product Overview

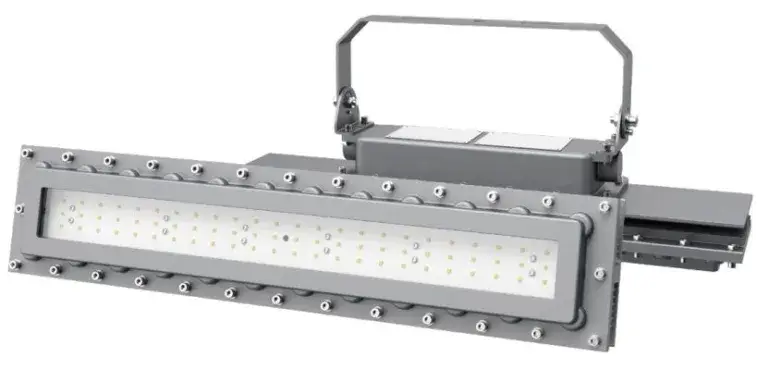

Discover uncompromising safety and brilliant illumination with the CES-EX-LN02-60 LED luminaire. This advanced lighting solution sets new standards for hazardous location lighting, merging rugged durability with cutting-edge LED technology. Purpose-built for demanding industrial environments, its innovative thermal management system ensures consistent performance even in extreme conditions.

At just 60 watts, this powerhouse delivers an impressive 7,800 lumens of crisp, uniform light while achieving remarkable efficiency of 130 lumens per watt. The fixture’s specialized linear form factor not only enhances cooling performance but also provides optimal light distribution across large areas. Its clear tempered glass lens ensures maximum light transmission while meeting stringent safety requirements.

Whether installed in chemical processing facilities, offshore platforms, or food production areas, this luminaire provides reliable, energy-efficient illumination while maintaining crucial safety certifications for hazardous locations. Easy to install and virtually maintenance-free, it represents the perfect balance of performance, safety, and longevity.

Key Features

– Premium Lumileds LED chips with 90°x120° beam angle
– Robust copper-free aluminum alloy construction with powder coating
– Tempered glass lens with >90% light transmission
– IP66-rated for superior environmental protection
– Meanwell LED driver with >90% efficiency
– 6KV surge protection
– Operating temperature range: -40°C to +50°C
– Multiple mounting options: Ceiling, Wall, Drop, or Pole mounting

Certifications and Compliance

– Class I, Division 2, Groups A, B, C, and D
– Class II, Division 2, Groups F and G
– Class III hazardous environment rated
– UL and CUL listed
– DLC certified

Technical Specifications

– Wattage: 60W
– Input Voltage: 120-277V AC
– Power Factor: 0.9
– Current Draw: 0.5A (120V) / 0.21A (277V)
– Luminous Output: 7,800 lumens
– Efficiency: 130 LM/W ±5
– Color Temperature: 5000K
– Color Rendering Index (CRI): >72
– Light Distribution: 90°x120°
– Junction Temperature: <75°C
– Driver Efficiency: ≥90%

Dimensions

– Length: 48.6 inches
– Width: 6.1 inches
– Height: 5.8 inches

Applications

– Oil and gas refineries
– Petrochemical facilities
– Chemical plants
– Wastewater treatment plants
– Offshore platforms
– Coal mines
– Aviation bases
– Food processing facilities
– Pharmaceutical plants
– Beverage facilities
– Any location with flammable vapors, gases, or ignitable dust

Installation Options

– Ceiling Mount: Triangle bracket with four M6x65 expansion screws
– Wall Mount: U-bracket with two M8x60 expansion screws
– Drop Mount: Chain suspension system with M6 lifting eyes
– Pole Mount: Available upon request

Warranty

– 5-year limited manufacturer warranty
– Performance may vary based on environmental conditions and application

Ordering Information

Model Structure:
– CES-EX-LN02-60
– CES: Manufacturer code
– EX: Explosion Proof series
– LN02: Linear Version 2
– 60: 60W power rating

Maintenance Notes

– No user-serviceable parts
– Must be installed by qualified personnel familiar with hazardous location requirements
– Disconnect power before servicing
– Suitable for wet locations
– Use minimum 90°C rated supply connection wires

This luminaire offers a direct replacement for 400-600W metal halide/HPS fixtures, providing significant energy savings while maintaining superior light output and safety compliance.
