Product Overview

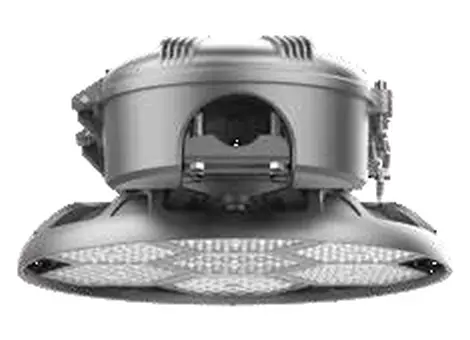

The HM03 High Mast LED Lighting System represents a breakthrough in industrial-scale area illumination technology, delivering unparalleled performance for critical infrastructure and large-area applications. Engineered specifically for high mast installations ranging from 50 to 150 feet, this advanced lighting platform combines cutting-edge LED technology with robust construction to provide superior illumination for the most demanding commercial and industrial environments.
Designed as a direct replacement for traditional 2000W HPS systems, the HM03 achieves remarkable energy efficiency while delivering lumen packages from 69,750 to 140,000 lumens. This modular lighting solution features a revolutionary die-cast aluminum housing with advanced thermal management, ensuring consistent performance and exceptional longevity exceeding 100,000 operational hours.
The system’s innovative flip-top driver compartment design significantly reduces maintenance time and costs, while the IP66-rated construction and 3G vibration rating ensure reliable operation in the harshest environmental conditions. With field-adjustable output capabilities and comprehensive control options, the HM03 delivers maximum flexibility for zone-specific lighting requirements.
Key Features
Superior Energy Efficiency
- Industry-leading efficacy up to 155 lumens per watt
- 60% energy reduction compared to traditional HPS systems
- Intelligent power factor correction maintaining >0.9 PF across all voltage ranges
- Total harmonic distortion below 20% for superior power quality
Advanced Optical Performance
- Precision-engineered prismatic glass or polycarbonate optics
- Multiple IESNA distribution patterns (Type II, III, IV, V) for optimized coverage
- Asymmetric beam angle options from 60° to maximize spacing efficiency
- Superior uniformity meeting IES RP-8 guidelines for roadway and area lighting
Robust Construction & Reliability
- Die-cast aluminum housing with advanced ventilation convection design
- IP66 ingress protection for complete dust and water resistance
- IK08 mechanical impact rating for vandal resistance
- 3G vibration rating ensuring stability in high-wind conditions
- Polyester powder-coated finish with 1,000-hour salt fog resistance
Intelligent Control Integration
- Standard 0-10V dimming capability for seamless integration
- DALI protocol compatibility for advanced building management systems
- 7-pin photocontrol socket for automated dusk-to-dawn operation
- Field-adjustable lumen output for zone-specific requirements
Certifications and Compliance
The HM03 system meets and exceeds all relevant international standards for commercial and industrial lighting applications. Our comprehensive certification portfolio ensures global compliance and qualification for utility rebate programs:
- UL/cUL Listed for North American markets
- CE Marked for European conformity
- ENEC Certified for European safety standards
- RoHS Compliant for environmental responsibility
- IP66 Rated for wet location installation
- Class I Electrical Protection
Technical Specifications
|
Specification |
Details |
|
Power Options |
450W / 600W / 750W / 900W / 1000W |
|
Luminous Efficacy |
140-155 lm/W |
|
Lumen Output Range |
69,750 – 140,000 lumens |
|
Color Temperature |
3000K / 4000K / 5000K / 5700K |
|
CRI (Color Rendering Index) |
>70 |
|
Input Voltage |
AC 100-277V / AC 200-480V |
|
Surge Protection |
10kV / 20kV (Optional) |
|
Operating Temperature |
-40°C to +50°C (-40°F to +122°F) |
|
Lifetime (L70B50) |
100,000 hours @ 25°C |
|
LED Source |
Premium Lumileds 5050 chips |
|
Driver Options |
Inventronics / MOSO |
|
Mounting Pole Diameter |
42-60mm (1.65-2.36 inches) |
|
Dimensions |
722 x 570 x 245mm (28.4 x 22.4 x 9.7 inches) |
|
Net Weight |
22.5 kg ± 0.5 (49.6 lbs ± 1.1) |
|
EPA (Effective Projected Area) |
3.877 ft² |
Applications
The HM03 High Mast LED Lighting System delivers exceptional performance across diverse industrial and commercial applications requiring superior area illumination:
Transportation Infrastructure
- Highway interchanges and major roadway intersections
- Toll plazas and border crossing facilities
- International airports and heliports
- Railway yards and intermodal terminals
Maritime & Port Operations
- Container terminal operations
- Shipyards and dry dock facilities
- Port cargo handling areas
- Marine vessel loading zones
Industrial & Commercial Facilities
- Large-scale manufacturing plants
- Distribution centers and logistics hubs
- Mining operations and quarries
- Construction sites and staging areas
Specialized Applications
- Correctional facility perimeter security
- Military installations and bases
- Sports complexes and stadium parking
- Outdoor event venues and fairgrounds
Customization Options
The HM03 system offers extensive customization capabilities to meet specific project requirements and site conditions:
Optical Configurations
- Multiple beam distribution patterns (Type II, III, IV, V, and 60°)
- Choice of prismatic glass or polycarbonate lens materials
- Asymmetric optics for roadway applications
Modular Configurations
- 4-module configuration (450W/600W models)
- 6-module configuration (750W/900W models)
- 7-module configuration (1000W model)
Control System Options
- Wireless control system integration
- Programmable dimming schedules
- Motion sensor activation capability
- Emergency override functionality
Environmental Adaptations
- Enhanced surge protection up to 20kV for lightning-prone areas
- Marine-grade coating for coastal installations
- Arctic package for extreme cold environments
- Desert package for high-temperature operation
Warranty
The HM03 High Mast LED Lighting System is backed by our comprehensive 5-year limited warranty, demonstrating our confidence in product quality and reliability. This industry-leading warranty coverage includes:
- Complete luminaire assembly including housing and optical components
- LED light engine with performance guarantee
- Driver and all electronic components
- Surge protection devices
- Powder-coated finish against defects
Extended warranty options are available for critical infrastructure projects requiring additional protection. Our dedicated technical support team provides comprehensive assistance throughout the warranty period, including remote diagnostics and on-site support when necessary.
Ordering Information
To specify the HM03 High Mast LED Lighting System for your project, please provide the following information when requesting a quotation:
Model Selection
- HD-HM03-450W: 4-module, 69,750 lumens
- HD-HM03-600W: 4-module, 87,000 lumens
- HD-HM03-750W: 6-module, 112,500 lumens
- HD-HM03-900W: 6-module, 126,000 lumens
- HD-HM03-1000W: 7-module, 140,000 lumens
Configuration Requirements
- Voltage specification (100-277V or 200-480V)
- Color temperature preference (3000K, 4000K, 5000K, or 5700K)
- Optic type selection (glass or polycarbonate)
- Distribution pattern (Type II, III, IV, V, or 60°)
- Control requirements (0-10V, DALI, photocontrol)
- Surge protection level (10kV standard or 20kV optional)
