From $130
Product Overview

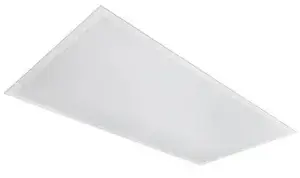

The BEYOND LED FLOW™ Back-lit Panel series represents the pinnacle of commercial lighting innovation, delivering exceptional illumination with outstanding energy efficiency. These ultra-thin panels provide uniform, glare-free ambient lighting through advanced LED technology. Engineered for versatility, these drop ceiling lights feature adjustable wattage and color temperature settings, making them ideal for both renovation projects and new construction installations.
Key Features
– Adjustable Performance: Multiple wattage settings and three CCT options (4000K/5000K/6500K) for customizable lighting solutions
– Superior Efficiency: Up to 125 lumens per watt for exceptional energy savings
– Premium Construction: Aluminum housing with super-slim profile and durable design
– Versatile Installation: Available in 2’x2′ and 2’x4′ configurations
– Advanced Dimming: 0-10V dimming capability for precise light control
– Built-in Safety: Standard earthquake clips included
– Universal Compatibility: 120-277VAC input voltage range
Certifications and Compliance
– UL Listed for safety assurance
– DLC Listed for energy efficiency verification
– Suitable for dry and damp locations
– Meets commercial building code requirements
Technical Specifications
Performance Metrics
– Lumen Output:
– 2’x2′: Up to 4,875 lumens
– 2’x4′: Up to 6,125 lumens
– High Output 2’x4′: Up to 8,750 lumens
– Color Rendering: CRI >80
– Beam Angle: 120 degrees
– Flicker Rate: <30%
Electrical Specifications
– Power Factor: >0.9
– Input Frequency: 50/60Hz
– Driver: Beyond Premium Series
– Dimming Protocol: 0-10V
Environmental Parameters
– Operating Temperature: -25°C to 40°C
– Operating Humidity: 10-93% RH
– Storage Humidity: 5-95% RH
– IP Rating: IP20
Applications
– Commercial Office Buildings
– Healthcare Facilities
– Educational Institutions
– Libraries
– Retail Spaces
– Professional Services
– Government Buildings
– Conference Centers
Customization Options
Wattage Selection
2’x2′ Model:
– 24W / 29W / 32W / 39W
2’x4′ Model:
– 29W / 34W / 39W / 49W
High Output 2’x4′ Model:
– 40W / 50W / 60W / 70W
Color Temperature Options
– Warm White: 4000K
– Natural White: 5000K
– Cool White: 6500K
Mounting Options
– Recessed T-Grid Installation (9/16″ or 15/16″)
– Surface Mount Kit (SKU: 151729 for 2’x2′, 153484 for 2’x4′)
– Hanging Mount Kit (SKU: 153457)
Warranty
– Comprehensive 5-year manufacturer warranty
– Technical support and service
– Product registration available
Ordering Information
Standard Models
– 2’x2′ Panel: SKU 156709
– 2’x4′ Panel: SKU 156710
– High Output 2’x4′ Panel: SKU 156774
Package Details
– Units per carton: 2 pieces
– 2’x2′ dimensions: 25″ x 3.2″ x 25″
– 2’x4′ dimensions: 25″ x 3.2″ x 49″
– Weight per carton:
– 2’x2′: 10.1 lbs
– 2’x4′: 19 lbs
Installation Support
– Detailed installation guides included
– Compatible with standard electrical systems
– Professional installation recommended
– Technical support available
– Comprehensive wiring diagrams provided
