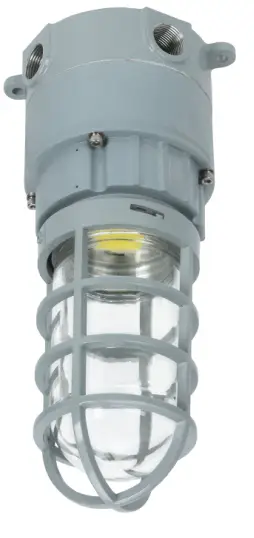

The LED Explosion Proof Light – O Series is a robust and reliable lighting solution designed for hazardous environments. This series is ideal for industries such as oil and gas, chemical production, and marine operations. With a compact design, high durability, and various mounting options, this LED explosion proof light ensures safety and efficiency in any challenging setting.
Key Features
– Explosion Proof Certification:
– ATEX Marking: Ex Eb mb IIC T6 Gb, Ex tb IIIC T80 Db IP66
– IECEx Marking
– UL844 Marking (North America)
– Marine Marking: UL 1598A
– IP66 rating ensures protection against dust and water
– Durable Construction:
– Housing made from copper-free aluminum
– Tempered glass lens available in frosted or clear
– Energy Efficient:
– 50,000 hours lifespan
– Power factor > 0.9
– Versatile Applications:
– Suitable for petroleum, mining, chemical industries, ocean platforms, aerospace clean rooms, and more
– Flexible Mounting Options:
– Pendant, wall, and end bracket mountings
– Beam angles: 40°, 60°, 90°, 120°
– Temperature Resistant:
– Operates in temperatures from -40°C (-40°F) to 60°C (140°F)
– Additional Features:
– High vibration and impact resistance
– Protective metal cage
– Various wattage options: 10W, 20W, 30W, 40W
– Color temperature range: 2200K to 7000K
– Dimmable and non-dimmable options
Technical Specifications
– Wattage Options: 10W, 20W, 30W, 40W
– Operating Voltage: AC100-277/220-480V; DC12-36V
– Total Lumens:
– 10W: 950 lm
– 20W: 1900 lm
– 30W: 2850 lm
– 40W: 3800 lm
– CRI: >70
– Beam Angles: 40°, 60°, 90°, 120°
– Mounting Styles:
– Ceiling Mounting
– Pole Mounting
– 90° Wall Mounting
– Lens Options: Frosted or clear
Ordering Guide
Product Code Example: EX-30W-OYZDAM
– EX: Explosion Proof Product
– 30W: Wattage
– O: Series
– Y: CCT (e.g., 22 for 2200K, 30 for 3000K)
– Z: Beam Angle (e.g., D40 for 40°, D60 for 60°)
– D: Dimming Option (D for Dimmable, N for Non-dimmable)
– A: Glass Type (A denotes Globe Glass and Wire Guard)
– M: Mounting Style (e.g., M1 for Ceiling Mounting, M2 for Pole Mounting)
Applications
– Oil and gas industry
– Mining operations
– Chemical production and storage
– Ocean platforms and marine operations
– Aerospace clean rooms
– Food and distilling production
– Metal treatment and fabrication
– Flour and fine particle production
– Various industrial environments requiring explosion-proof lighting
Dimensions and Weight
– Model EX-10W:
– Packing Size: 10.43 x 14.96 x 10.04 inches
– Net Weight: 4.62 kg (10.25 lbs)
– Model EX-20W:
– Packing Size: 10.43 x 14.96 x 10.04 inches
– Net Weight: 5.4 kg (11.90 lbs)
Accessories
– Globe Guard
– Heat Sink
– Reflector
– Flat Guard
– Extension Globe Glass
Warranty
– 5-year warranty
