ranging from 120W to 300W. This LED Flood Light is designed to replace a 1000 Watt

From $305

Product Overview

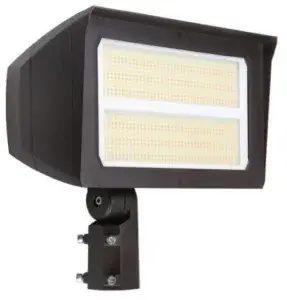

The UNION™ LED Flood Light represents the cutting-edge in commercial lighting technology for 2024. Engineered for superior performance and versatility, this advanced lighting solution delivers exceptional illumination of up to 42,500 lumens while maintaining impressive energy efficiency of up to 145 lumens per watt. Available in two powerful models, the UNION outdoor LED flood light is specifically designed to replace traditional 1000-watt metal halide fixtures, offering substantial energy savings without compromising on light output.

Key Features

– Adjustable Wattage Technology:
– Model 156693: 120W/150W/200W configurations
– Model 156598: 200W/240W/300W configurations
– Superior Illumination: Up to 43,500 lumens with 145 LM/W efficiency
– Premium Components:
– Lumileds SMD2835 LED chips
– LIFUD driver with advanced surge protection
– Die-cast aluminum housing with bronze finish
– Clear tempered glass lens
– Versatile Mounting Options: Includes both Yoke Mount and Slip Fitter
– Advanced Optics: NEMA 6×6 with 85°x75° beam angle
– Environmental Protection: IP65 rated for outdoor applications
– Temperature Resilient: Operates from -40°C to 50°C

Certifications and Compliance

– UL Listed
– DLC Listed
– IP65 Rated
– Power Factor ≥0.9
– THD ≤20%
– Surge Protection: L/N-PE: 6kV, L-N: 6kV (additional 10KV SP)

Technical Specifications

Electrical Parameters
– Input Voltage: 120-277VAC
– Frequency: 50/60Hz
– Dimming Capability: 0-10V
– Flicker Rate: ≤5%

Optical Parameters
– Color Temperature: 5000K (Cool White)
– Color Rendering Index (CRI): >80
– Beam Angle: 85°x75°
– Distribution Pattern: Clear Tempered Glass

Physical Specifications
– Housing Material: Die-cast aluminum
– Finish Color: Bronze
– Operating Humidity: 20-90% RH
– Storage Temperature: -40°C to 80°C

Applications

Ideal for:
– Commercial Parking Lots
– Warehouse Exteriors
– Security Lighting
– Athletic Facilities
– Signage Illumination
– Loading Docks
– Building Facades
– Industrial Yards

Customization Options

– Photocell Integration (Optional)
– Multiple Mounting Configurations:
– Adjustable Fitter Mounting (AM)
– Yoke Mounting (YM)
– Flood Mounting (FM)
– Wattage Selection Options
– 0-10V Dimming Capability

Warranty

– Comprehensive 5-year manufacturer warranty
– Professional technical support
– Product registration required for warranty activation

Ordering Information

Available Models
1. SKU 156693:
– Wattage: 120W/150W/200W
– Dimensions: 13.58″ x 13″ x 9.84″
– Weight: 9.90 lbs (net)

2. SKU 156598:
– Wattage: 200W/240W/300W
– Dimensions: 15.35″ x 14.96″ x 10.63″
– Weight: 12.94 lbs (net)

Installation Notes

– Professional installation recommended
– Complete mounting hardware included
– Detailed installation guide provided
– Multiple mounting options for various applications
– Tool-free wattage adjustment capability
– Built-in surge protection
– Easy access for maintenance

Energy Savings

– Direct replacement for 1000W metal halide fixtures
– Up to 75% reduction in energy consumption
– Minimal maintenance requirements
– Instant-on capability
– No warm-up period required
