From $300
Product Overview

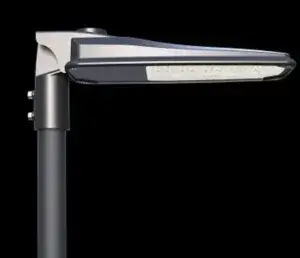

The E-Lite Star Series LED Street Light represents the pinnacle of efficient, economical, and convenient outdoor illumination. Designed for various urban landscapes, from bustling city streets to tranquil pedestrian paths, this highly versatile street lighting solution combines cutting-edge technology with practical design. With its impressive 130 lumens per watt efficiency, the Star Series stands out as a budget-friendly option without compromising on performance or durability.
Key Features
– High Efficiency: Industry-leading 130 lumens per watt
– Versatile Design: Suitable for roads, streets, paths, parks, and more
– Durable Construction: IP66 water and dust resistance, IK08 impact rating
– Flexible Installation: Adjustable 0°/90° spigot for easy mounting
– Future-Proof: Compatible with IoT systems via optional NEMA socket
– Multiple Optical Options: Various light distributions for optimal coverage
– Energy-Efficient: Significant reduction in power consumption
– Low Maintenance: Long-lasting performance with minimal upkeep
Certifications and Compliance
– IP66 Rated: Protection against dust and powerful water jets
– IK08 Certified: High impact resistance
– 3G Vibration Tested: Ensures stability in various environmental conditions
Technical Specifications
– LED Chips: Philips Lumileds 3030
– Input Voltage: 100-277 VAC (347/480 VAC optional)
– Color Temperature: 5000K standard (2500-6500K optional)
– Lumen Maintenance: L70>120,000 hours
– Power Factor: ≥0.95
– THD: ≤20%
– Housing Material: Corrosion-resistant die-cast aluminum alloy
– Finish: Grey polyester powder coat
– Operating Temperature: -30°C to 45°C (-22°F to 113°F)
– Storage Temperature: -40°C to 80°C (-40°F to 176°F)
Applications
– Roads and Motorways
– Urban and Residential Streets
– Bike and Pedestrian Paths
– Squares and Pedestrian Areas
– Bridges
– Large Areas
– Railway Stations and Metros
– Car Parks
Customization Options
– Wattage: Available from 30W to 240W
– Lumen Output: 3,900 to 31,200 lumens
– Color Temperature: Customizable from 2500K to 6500K
– Optical Lenses: Multiple choices for various light distributions
– Dimming: 0-10V / 1-10V dimming available
– Smart Controls: Optional microwave motion sensor and IoT compatibility
– Power Cord: Australian, European, or American standard options
Warranty
5-year comprehensive warranty on all components
Ordering Information
When placing an order, please specify the following:
1. Model: EO-STSA (60/120/150/200)
2. Wattage: 30W to 240W
3. Dimmability: Non-dimmable or dimmable
4. Color Temperature: 2500-3500K, 3500-4500K, 4500-5500K, or 6000-7000K
5. Optical Type: Various options available (e.g., TYPE II-S, TYPE III-S)
6. Input Voltage: AC 100-277V or AC 200-480V
7. Power Cable: Australian, European, or American standard
8. Sensor: With or without
9. Mounting: Slip fitter or other options
10. Driver: Specify brand preference
11. Emergency Power Backup: Required or not required
Contact our sales team for a customized quote and to discuss your specific lighting project requirements.
