Product Overview

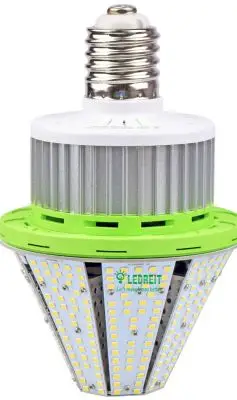

The LED Pyramid Corn Bulb represents a revolutionary advancement in retrofit lighting solutions for commercial and industrial environments. Engineered specifically for base-up applications, this innovative bulb is designed to directly replace traditional MH, HPS, and HID lamps while preserving existing fixtures. Its unique conical surface LED layout significantly enhances lighting efficiency and effectiveness, making it an ideal choice for businesses looking to upgrade their lighting systems without extensive modifications.
A standout feature of the LED Pyramid Corn Bulb is its optimized downward light distribution, which sets it apart from conventional lighting solutions. The bulb’s distinctive conical design strategically positions LEDs to direct light precisely where it’s needed most – towards the ground. This ingenious approach eliminates wasted illumination and reduces light pollution, a common issue with traditional omnidirectional bulbs. In practical terms, this means brighter, more focused illumination in work areas, improved visibility in parking structures, and enhanced safety in outdoor spaces.
The optimized distribution also minimizes the need for additional reflectors or light-directing accessories, streamlining fixture design and potentially reducing overall installation costs. For businesses seeking to maximize lighting efficiency while minimizing energy waste, the LED Pyramid Corn Bulb’s targeted illumination approach offers a clear advantage in both performance and sustainability.
Key Features
– Conical surface LED layout for optimized downward light distribution
– Superior lighting efficiency compared to standard corn bulbs
– Advanced thermal management system with aluminum shell and Sunon brand ball bearing fan
– Thermal dimming feature activates at 90°C to protect key components
– IP65-rated driver enclosed in aluminum for enhanced durability
– Epistar SMD Technology with 93% purity for superior light quality
– Potting technology for improved heat dissipation and moisture resistance
– Universal AC input compatibility (100-277VAC, 100-347VAC, or 200-480VAC)
Certifications and Compliance
– UL Listed
– CE Certified (implied by CE mark)
– IP65 rated driver
Technical Specifications
– Wattage range: 20W to 80W
– Color temperature options: 2200K, 2700K, 3000K, 4000K, 4500K, 5000K, 5700K, 6500K
– Special colors available: Amber, Red, Green, Blue
– Luminous efficacy options: 125 lm/W or 150 lm/W
– Luminous flux: 2,600 to 12,000 lumens (varies by wattage and efficacy)
– Color Rendering Index (CRI): Ra>83
– Power factor: >0.95
– Lifespan: >50,000 hours
– Dimensions:
– 20W: Φ106x167mm
– 30W-60W: Φ128x180mm
– 80W: Φ150x218mm
– Base types: E39/E26 (confirm specific models with manufacturer)
Applications
Ideal for base-up installations in various commercial and industrial settings:
– Indoor and outdoor parking garage lighting
– Canopy lighting fixtures
– Explosive environment lighting fixtures
– High bay fixtures
– Pole top lighting fixtures
– Warehouses and distribution centers
– Manufacturing facilities
– Retail spaces
Customization Options
– Multiple wattage choices to replace various traditional lamp types
– Selectable color temperatures for different environments
– Special color options for unique applications
– Dimmable versions available (0-10V, optional)
– Choice of 125 lm/W or 150 lm/W efficacy
Comparative Advantage
The LED Pyramid Corn Bulb offers superior efficiency compared to standard corn bulbs. For example, a 50W Pyramid corn bulb can provide equivalent illumination to a 60W-70W normal corn bulb, resulting in energy savings and improved lighting performance.
Installation
– Simple retrofit process – remove existing ballast and capacitor before installation
– Compatible with both E39 and E26 bases (confirm specific models)
– Designed for base-up applications, ensuring optimal light distribution
Warranty
5-year factory warranty
Ordering Information
To place an order or request more information, please have the following details ready:
- Desired wattage (20W, 30W, 40W, 50W, 60W, or 80W)
- Preferred color temperature or special color
- Luminous efficacy choice (125 lm/W or 150 lm/W)
- Quantity required
- Specific application or installation type
- Any special requirements (e.g., dimming functionality)
Contact our sales team to discuss your commercial lighting needs and find the perfect LED Pyramid Corn Bulb solution for your project. Our lighting experts are ready to assist you in selecting the optimal configuration to meet your specific requirements and maximize your lighting.
