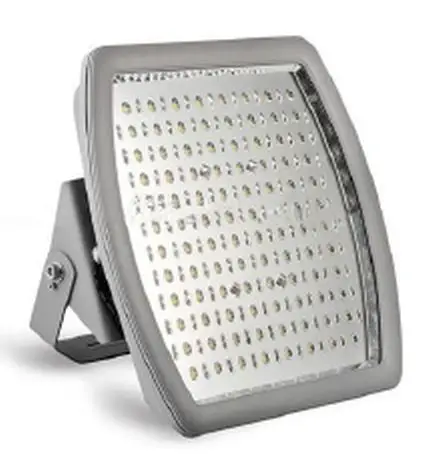

Ledsion LED hazardous location flood light

From $400

Product Overview

The Ledsion Explosion-Proof LED Flood Light is engineered for hazardous locations, ensuring optimal performance and safety in challenging environments. With a robust construction and high-quality optical system, this flood light is ideal for applications in various industrial settings, including gas stations, petroleum and chemical industries, coal mines, military ports, and marine environments.



Key Features

Durable Construction: Heavy die-cast aluminum alloy housing with a grey powder-coated finish, paired with a tempered glass lens, ensures durability and resistance to corrosion and rust.

High-Performance LEDs: Equipped with Lumileds 3030 LED chips, delivering 130 lm/W efficiency.

Versatile Mounting Options: Wall U bracket or conduit thread pendant mounting, with thread pipe mounting available upon request.

Wide Beam Angle: 120° beam angle for broad and uniform light distribution.

Long Lifespan: Designed to last up to 50,000 hours, ensuring long-term reliability.

IP68 Rated: Provides excellent protection against dust and water, suitable for use in Zone 1 & Zone 2 gaseous environments, and Zone 21 & Zone 22 dust environments.

Explosion Proof: Certified for hazardous locations, Class I Division 2 Groups A, B, C, D.

Warranty: Comes with a 5-year limited warranty.



Certifications

UL Listed: Ensures safety and performance standards are met.

DLC Premium: Certified for high efficiency and performance.

Explosion Proof: Meets stringent standards for hazardous locations.

Applications

– Gas stations

– Petroleum and chemical industries

– Coal mines

– Military ports

– Marine environments



Technical Specifications

Power Options: 100W and 200W

Light Efficiency: 130 lm/W

Color Temperature: 5000K (standard)

CRI: >72

Input Voltage: 120-277V/AC

Working Temperature: -20°C to +45°C

Junction Temperature: <75°C

Light Distribution: 120° beam angle

Lumens Output:

  – 100W Model: 13,000 LM

  – 200W Model: 26,000 LM

Product Variants and Sizes

CES-J100W: 100W, 13000 LM, 130 LM/W, 5000K, Dimensions: 11.8″ x 9.9″ x 6.5″

CES-J200W: 200W, 26000 LM, 130 LM/W, 5000K, Dimensions: 15.8″ x 11.8″ x 6.7″



Mounting and Installation

Wall U Bracket

Conduit Thread Pendant Mounting

Thread Pipe Mounting (available upon request)



Ordering Guide

Specify the model number, power, and any additional options when placing an order.
