LED Architectural Bollards-Malibu-Square; Paracline, Stock Louver or Cut Grill style;

From $600

Product Overview

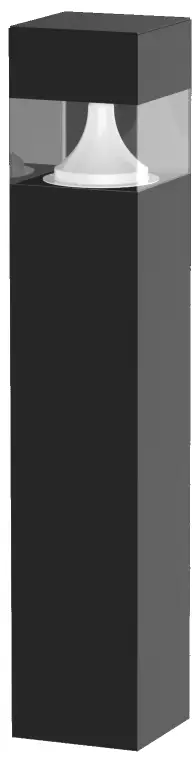

The Malibu Square Architectural LED Bollard redefines outdoor illumination with its versatile design and energy-efficient performance. This sophisticated lighting solution offers a perfect blend of form and function, featuring a sleek square profile available in heights of 24″, 36″, and 42″. The series showcases design versatility with its Flat Top and elegant Cone Dome options, complemented by three distinct light distribution patterns: the directional Cast Grill 45°, the innovative Paracline, and the classic Stock Louver.

Each configuration is engineered to provide optimal illumination for diverse commercial and outdoor environments. Whether enhancing the ambiance of pedestrian walkways, accentuating architectural features, or ensuring safety in public spaces, the Malibu Square LED Bollard combines cutting-edge with aesthetic flexibility, making it an ideal choice for discerning lighting professionals seeking to elevate the visual appeal and functionality of exterior spaces.



Key Features

– Energy savings of over 66% compared to HID light sources

– High-efficiency LED technology with improved lumen maintenance

– Extruded aluminum body with cast aluminum base

– 3 Mil powder coat finish for durability

– Suitable for wet locations

– Operating temperature range: -30°C to 60°C

– Multiple design options: Cast Grill, Paracline, and Stock Louver

– Available in various heights: 24″, 36″, and 42″

– Optional vandal-resistant base



Technical Specifications

– Available wattages: 15W, 20W, 30W

– Lumen output: 2,754 to 5,509 lumens (model dependent)

– Efficacy: Up to 183 LPW

– Color temperature options: 3000K, 4000K, 5000K

– CRI: 70+

– Rated life (L70): >200,000 hours

– Input voltage: 120-277V (standard), 480V (optional)

– Frequency: 50/60Hz

– Dimensions: 8″ square, heights of 24″, 36″, or 42″

Applications

– Pedestrian walkways

– Office and apartment building exteriors

– Hotel grounds

– Parks and recreational areas

– Commercial landscaping

– Campus environments



Customization Options

– Top styles: Flat Top, Cone Dome

– Light distribution: Cast Grill 45°, Paracline, Stock Louver

– Color finishes: Black, White, Bronze, Silver, Graphite

– Optional features:

  – Marine Grade finish

  – Microwave sensor

  – Motion sensor

  – Button photocell

  – Wireless controls

  – Opal acrylic lens

– 0-10V Dimming driver (optional)



Warranty

10-year limited warranty



Ordering Information

Use the following format to specify your desired configuration:

MLB-[Size]-[Height]-[Light Dist.]-[Top]-[Wattage]-[Color Temp]-[Voltage]-[Color]-[Options]

Example: MLB-8S-42-CG-FT-20CLED-40K-MV-BRZ-MWS



Additional Information

– Mounting kit with (3x) 10″ anchor bolts included

– Clear polycarbonate lens standard, opal acrylic lens optional

– Silicone gasket for weather-tight protection

– Proudly manufactured and assembled in the USA
