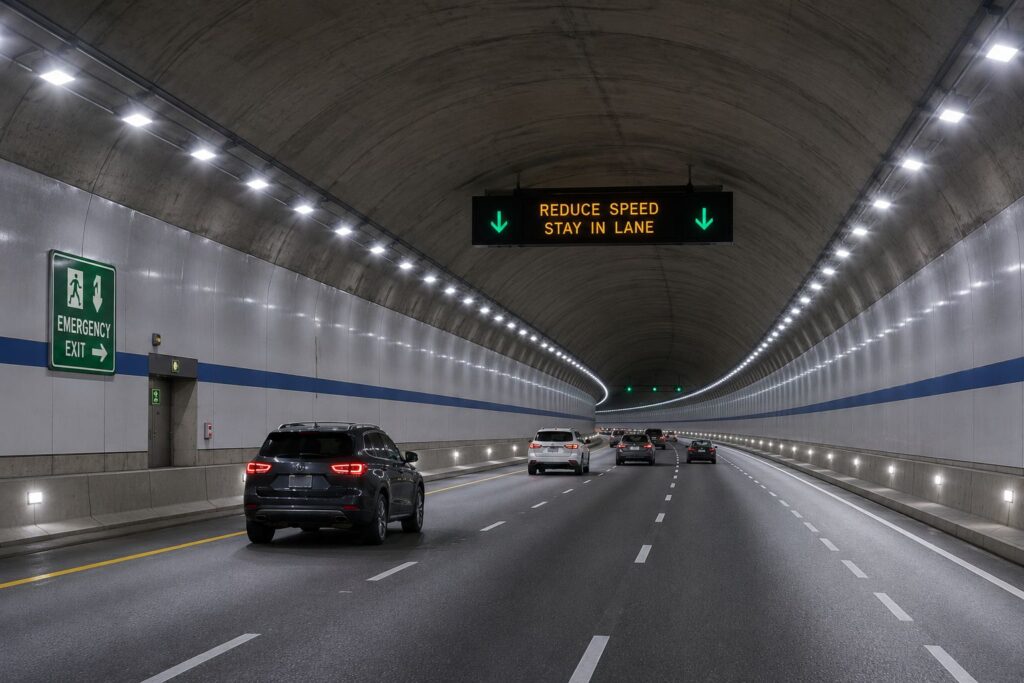

Tunnel Lighting Design Begins with Driver Safety
Tunnel lighting is one of the most specialized disciplines in commercial and transportation lighting.
Unlike conventional roadway lighting, tunnel systems must accommodate changing daylight conditions, high travel speeds, enclosed environments, and continuous operation.
A successful lighting design improves:
- Driver visibility
- Object recognition
- Lane definition
- Visual comfort
- Emergency response
- Long-term operating efficiency
The objective is to create a lighting system that allows drivers to safely transition into, through, and out of the tunnel while maintaining consistent visibility.
Explore our complete range of Commercial LED Tunnel Lights, featuring high-efficacy LEDs, precision optics, intelligent controls, and rugged construction designed for transportation and infrastructure projects.
Modern tunnel lighting design combines advanced LED technology, precision optics, adaptive controls, and photometric planning to improve safety while reducing long-term operating costs.
Proper tunnel lighting design requires much more than selecting a fixture. A successful lighting system balances driver visibility, visual adaptation, energy efficiency, maintenance, and long-term reliability.
Our lighting specialists can help develop commercial tunnel lighting solutions for roadway, railway, pedestrian, and infrastructure projects.
Speak with a Tunnel Lighting Specialist – – https://industriallightingfixtures.org/
Understanding the Five Tunnel Lighting Zones
Modern tunnel lighting systems are typically organized into five functional lighting zones.
Each serves a specific purpose in helping drivers adapt to changing light levels.
| Lighting Zone | Primary Purpose |
|---|---|
| Access Zone | Allows drivers to identify the tunnel entrance and prepare for visual adaptation |
| Threshold Zone | Provides higher illumination to reduce the contrast between daylight and the tunnel interior |
| Transition Zone | Gradually reduces lighting levels as drivers’ eyes adapt |
| Interior Zone | Maintains consistent illumination throughout the tunnel |
| Exit Zone | Helps drivers comfortably readapt to daylight as they leave the tunnel |
These zones are fundamental to modern tunnel lighting design because they balance safety, visual adaptation, and energy efficiency rather than maintaining one constant lighting level throughout the tunnel. Modern guidance documents continue to organize tunnel lighting around these functional zones and photometric design principles.
New to tunnel lighting? Begin with our Understanding the Purpose of Tunnel Lighting guide to learn about visual adaptation, the black hole effect, and the role lighting plays in improving roadway safety.
Photometric Design Drives Every Project
Rather than placing fixtures at equal intervals, engineers begin with a photometric lighting analysis.
A photometric layout evaluates:
- Tunnel dimensions
- Roadway width
- Number of traffic lanes
- Mounting height
- Surface reflectance
- Vehicle speed
- Desired illumination levels
- Uniformity requirements
This analysis helps determine fixture spacing, aiming, and lumen output before construction begins.
Fixture Spacing Is More Important Than Fixture Quantity
Installing additional fixtures does not automatically improve lighting quality.
Proper spacing creates:
- Uniform illumination
- Smooth light transitions
- Better lane visibility
- Reduced shadows
- Improved object recognition
- Lower glare
Thoughtful fixture placement often produces better results than simply increasing fixture density.
Selecting the Right Optical Distribution
Tunnel fixtures are available with several optical distributions depending on the tunnel geometry.
Common optical options include:
- Narrow distribution
- Medium distribution
- Wide distribution
- Symmetrical optics
- Asymmetrical optics
Selecting the proper optic allows designers to place light where it is needed while reducing wasted light and improving uniformity.
Glare Control Improves Driver Comfort
One of the primary goals of tunnel lighting design is minimizing glare.
Excessive glare can reduce visibility even when illumination levels are adequate.
Modern tunnel luminaires often include:
- Precision optics
- Low-glare lenses
- Controlled beam distributions
- High-performance reflectors
Reducing glare improves driver comfort while making roadway markings, vehicles, and obstacles easier to recognize.
High-Efficacy LED Technology
LED tunnel lighting has advanced significantly over the past decade.
Many commercial tunnel luminaires now provide:
- Higher lumens per watt
- Longer service life
- Better optical efficiency
- Improved color rendering
- Reduced maintenance
- Instant-on performance
- Intelligent dimming compatibility
Some premium tunnel fixtures now exceed 170 lumens per watt, allowing agencies to reduce energy consumption while maintaining excellent roadway visibility.
Adaptive Lighting Controls
Unlike older lighting systems that operated at full output continuously, modern LED tunnel lighting can automatically adjust illumination throughout the day.
Adaptive controls may respond to:
- Outside daylight levels
- Weather conditions
- Traffic volume
- Time of day
- Maintenance activities
- Emergency operation
These intelligent systems improve energy efficiency while maintaining safe lighting conditions.
Mounting Height and Fixture Placement
Tunnel lighting performance depends on much more than selecting a high-quality fixture.
Mounting height and fixture placement directly affect:
- Light distribution
- Uniformity
- Driver visibility
- Maintenance accessibility
- Glare control
- Overall system efficiency
Depending on the tunnel design, fixtures may be mounted:
- Directly above traffic lanes
- Along tunnel walls
- Between opposing traffic lanes
- On structural cross members
- Within continuous mounting channels
The goal is to provide consistent illumination throughout the tunnel while minimizing shadows and excessive brightness variations.
Choosing the Proper Beam Distribution
Tunnel geometry varies considerably from one project to another.
Modern LED tunnel luminaires are available with precision optics designed to match different roadway configurations.
Common optical distributions include:
| Optical Distribution | Typical Application |
|---|---|
| Narrow | Long mounting distances |
| Medium | Standard roadway tunnels |
| Wide | Low ceiling tunnels |
| Symmetrical | Center-mounted fixtures |
| Asymmetrical | Wall-mounted fixtures and roadway edges |
Selecting the proper optic improves lighting uniformity while reducing wasted light and unnecessary fixture counts.
Environmental Protection Is Critical
Tunnel lighting systems operate in harsh environments.
Fixtures may be exposed to:
- Moisture
- Condensation
- Vehicle exhaust
- Dust
- Road salt
- High humidity
- Temperature fluctuations
- Continuous vibration
Commercial tunnel luminaires should incorporate:
- Die-cast aluminum housings
- Tempered glass lenses
- Silicone gasketing
- Stainless steel hardware
- Corrosion-resistant finishes
- High-performance thermal management
Many transportation agencies specify IP66 or IP67 environmental protection to ensure long-term reliability under demanding operating conditions.
Corrosion-Resistant Finishes Extend Fixture Life
Some tunnels experience highly corrosive environments.
Examples include:
- Coastal highways
- Marine crossings
- Port facilities
- Mountain tunnels exposed to deicing chemicals
- Utility tunnels with elevated humidity
Marine-grade powder-coated finishes and corrosion-resistant hardware help extend fixture life while reducing maintenance requirements.
Emergency Tunnel Lighting
Tunnel lighting must continue supporting safe travel during emergencies.
Emergency lighting systems help provide:
- Safe vehicle movement
- Emergency evacuation routes
- Access for first responders
- Visibility for maintenance personnel
- Identification of emergency exits
- Continued operation during power interruptions
Depending on the application, emergency power may be provided through backup generators, centralized emergency power systems, or dedicated battery-supported lighting circuits.
Tunnel Lighting Retrofit Projects
Many existing tunnels continue to operate older lighting technologies such as:
- High-pressure sodium
- Metal halide
- Fluorescent systems
Modern LED retrofits provide substantial operational improvements.
Typical benefits include:
- Lower energy consumption
- Reduced maintenance
- Improved color rendering
- Better optical control
- Instant-on performance
- Longer service life
- Reduced lane closures for maintenance
- Improved lighting uniformity
Because tunnel maintenance often requires traffic control measures, reducing relamping frequency can significantly lower long-term operating costs.
Intelligent Lighting Controls
Today’s tunnel lighting systems often incorporate advanced control technologies.
These systems may include:
- Daylight sensors
- Time scheduling
- Adaptive dimming
- Traffic-responsive controls
- Remote monitoring
- Fault diagnostics
- Energy reporting
Intelligent controls allow operators to optimize lighting performance while minimizing electrical consumption.
Planning for Future Maintenance
A successful lighting design considers future maintenance from the beginning.
Designers should evaluate:
- Fixture accessibility
- Maintenance vehicle access
- Driver replacement procedures
- Cleaning schedules
- Electrical isolation
- Spare fixture inventory
- Control system access
Maintenance-friendly designs reduce labor costs while minimizing traffic disruptions during future servicing.
Common Tunnel Lighting Design Mistakes
Avoid these common specification errors:
- Designing without a photometric analysis
- Ignoring the five lighting zones
- Selecting fixtures based only on wattage
- Choosing incorrect beam distributions
- Creating excessive glare
- Underestimating maintenance access requirements
- Omitting adaptive lighting controls
- Ignoring environmental protection ratings
- Failing to include surge protection
- Overlooking future expansion requirements
Thoughtful planning helps maximize both safety and long-term system performance.
Commercial Buyer Checklist
Before requesting a tunnel lighting proposal, gather:
✓ Tunnel length
✓ Tunnel width
✓ Number of traffic lanes
✓ Mounting height
✓ Roadway classification
✓ Existing lighting information
✓ Electrical service voltage
✓ Environmental conditions
✓ Lighting control requirements
✓ Emergency power requirements
✓ Site drawings
✓ Photographs of the tunnel
Providing complete project information allows lighting specialists to develop accurate photometric layouts and fixture recommendations.
Inline Buyer Q&A
Why is a photometric layout important?
A photometric layout verifies illumination levels, fixture spacing, uniformity, and beam distribution before installation, helping avoid costly field adjustments.
Should every tunnel use adaptive lighting controls?
Most modern roadway tunnels benefit from adaptive controls because they adjust light output based on daylight conditions, improving safety while reducing energy consumption.
Why are tunnel fixtures different from standard roadway lights?
Tunnel luminaires are engineered for enclosed environments, continuous operation, harsh conditions, and specialized optical performance required for safe visual adaptation.
What environmental rating should tunnel fixtures have?
Many commercial tunnel lighting projects specify IP66 or IP67 fixtures to protect against dust, moisture, and demanding operating conditions.
Why is glare control so important?
Reducing glare improves driver comfort, enhances object recognition, and allows motorists to identify roadway conditions more quickly and safely.
Design Tunnel Lighting for Long-Term Performance
Successful tunnel lighting balances driver safety, visual comfort, operational efficiency, and long-term reliability. Through careful photometric planning, precision optics, adaptive controls, durable construction, and modern LED technology, transportation agencies and facility owners can create lighting systems that perform reliably for decades while reducing maintenance and energy costs.
Ready to Design a Modern Tunnel Lighting System?
Whether you’re designing a new roadway tunnel, upgrading an existing installation, or evaluating lighting options for rail, pedestrian, utility, or infrastructure tunnels, our lighting specialists can help specify the right fixtures and develop a complete lighting solution.
Explore our complete line of Commercial LED Tunnel Lights and let us help you build a safer, more efficient tunnel lighting system.
Frequently Asked Questions
How are tunnel lighting systems designed?
Tunnel lighting begins with a photometric analysis that considers tunnel geometry, traffic speed, mounting height, roadway width, optical distribution, lighting zones, and desired illumination levels.
Can existing tunnel lighting be upgraded to LED?
Yes. Many transportation agencies are replacing high-pressure sodium, metal halide, and fluorescent tunnel lighting with modern LED luminaires to improve efficiency, reliability, and lighting quality.
What is the advantage of adaptive tunnel lighting?
Adaptive controls automatically adjust illumination levels based on daylight and operating conditions, helping maintain safe visibility while reducing energy consumption.
How long do commercial LED tunnel lights last?
Many premium tunnel luminaires are rated for 100,000 hours or more, significantly reducing maintenance and traffic disruptions compared to older technologies.
Why are precision optics important?
Precision optics direct light where it is needed, improving roadway visibility, reducing glare, enhancing uniformity, and maximizing fixture efficiency.
