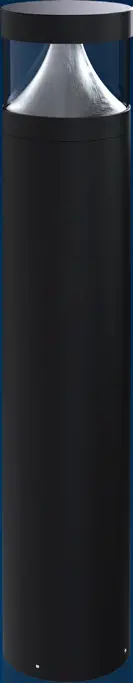

Terra - LED Bollard

From $300

Product Overview

The Terra Series Bollard Light redefines outdoor illumination with its cutting-edge LED technology and sleek design. This versatile lighting solution combines energy efficiency with adaptability, featuring an elegant cylindrical form that complements various architectural styles. Engineered for optimal performance in exterior environments, the Terra Series offers customizable settings to meet diverse lighting needs.

Whether illuminating winding pathways, enhancing the ambiance of public spaces, or providing security lighting for commercial areas, these LED bollards deliver superior functionality without compromising on aesthetics. The Terra Series stands as a testament to modern lighting innovation, seamlessly blending form and function to transform outdoor spaces with its precise, adjustable, and visually appealing illumination


Key Features

– Multi-wattage and multi-CCT switchable options

– Corrosion-resistant extruded aluminum exterior

– Long lifespan of 50,000 hours

– Easy installation for new construction or retrofit applications

– Wattage and CCT selectable switches inside the fixture

– Even light distribution pattern

– Ground-level lighting without glare for pedestrians and drivers


Certifications and Compliance

– IP66 rated for dust and water resistance

– IK09 rated for impact resistance

– 3G Vibration tested


Technical Specifications

– Wattage Options: 12W, 16W, 22W (selectable)

– Color Temperature: 3000K, 4000K, 5000K (selectable)

– Efficacy: 120-140 lm/W

– Input Voltage: AC 100-277V

– CRI: ≥80

– Beam Angle: 240°

– Power Factor: 0.95 min

– LED Brand: Philips Lumileds

– Driver Brand: Sosen

– Operating Temperature: -40°C to +45°C (-40°F to 113°F)

– Dimensions: 1060mm x Ø145mm

– Weight: 5Kg


– Car parks

– Parks, promenades, and pathways

– Urban and residential streets

– Building surrounds

– Private sites


Customization Options

– Wattage selection: 12W, 16W, 22W

– Color temperature selection: 3000K, 4000K, 5000K

– Fixture color options available (RAL9017 Black mentioned)

– Dimmable option available

– Power cable options: European, American, or Australian standard



5-year warranty


Ordering Information

Use the following format to specify your desired configuration:

EL-BLTE-MW(12/16/22)T-MCCT(30K/40K/50K)-[Mounting]-[Input Voltage]-[Power Cable]-[IP Rating]-[Fixture Color]-[Driver]-[LEDs]-[Dimmability]

Example: EL-BLTE-MW22T-MCCT40K-1-AC100-277V-N1-IP66-RAL9017-1-1-0


Additional Information

– Ground mount installation recommended for optimal performance

– IES files available for lighting design purposes

– Easy dip switches for power and CCT selection inside the fixture
