LED High Output Sports Light

From $800

Product Overview

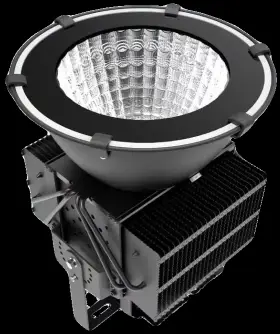

The U-SLHO High Output Sports Light is a powerful LED lighting solution designed for large-scale outdoor and indoor venues. With its high wattage and lumen output, this fixture is ideal for illuminating stadiums, arenas, and other expansive spaces where bright, consistent lighting is crucial.



Key Features

– High lumen output: up to 96,000 lumens

– Equivalent to 2,000W-3,000W metal halide fixtures

– Long lifespan: L70 rated for 150,000 hours

– Excellent color rendering: CRI 80+

– High efficacy: up to 172 lm/W

– IP67 rated for superior dust and water protection

– Die-cast aluminum construction for durability

– Anti-glare glass reflector

– High wind resistance: can withstand winds up to 125 mph



Certifications and Compliance

– FCC certified

– CE marked

– RoHS compliant

Technical Specifications

– Available wattages: 400W and 600W

– Lumen output: 64,000 lm (400W) and 96,000 lm (600W)

– Color temperature options: 3000K, 4000K, 5000K, 5700K

– Beam angle options: 25°, 45°, 60°, 90°, 100°

– Input voltage: 100-277V (standard) or 480V

– Power factor: 0.99

– Maximum THD: 12%

– Operating temperature: -40°F to 150°F (-40°C to 65°C)

– EPA rating: 2.3

– Dimensions: 22.44″ x 22.44″ x 15.94″ (570mm x 570mm x 405mm)

– Weight: 44.1 lbs (20 kg)



Applications

Outdoor sports fields

– Stadiums and arenas

– Concert halls

– Amphitheaters

– Airport runways

– Large indoor venues



Customization Options

– Multiple wattage choices: 400W or 600W

– Color temperature selection: 3000K, 4000K, 5000K, 5700K

– Beam angle options: 25°, 45°, 60°, 90°, 100°

– Input voltage: 100-277V or 480V

– Mounting options: Trunnion mount (standard), 3/5/7-pin twist-lock base

– Finish colors: Black (standard), Bronze, White, Gray, or custom colors

– Optional features: Motion sensor, photocell, emergency inverter

– Additional whip length available



Warranty

5-year limited warranty



Ordering Information

Use the following format to specify your order:

U-SLHO-[Wattage]-[Color Temp]-[Lumen Package]-[Distribution]-[Input Voltage]-[Mounting]-[Options]-[Finish]

Example: U-SLHO-600-50-160-1-1-TM-EI-BL

– U-SLHO: Model name

– 600: 600W

– 50: 5000K color temperature

– 160: 160 lm/W efficacy

– 1: 25° beam angle

– 1: 100-277V input

– TM: Trunnion mount

– EI: Emergency inverter

– BL: Black finish



Additional Information

– Laser light beam accessory available upon request

– Check for estimated time of arrival (ETA) when ordering

– Additional charges may apply for optional features and non-standard colors
