LS-5EHB-LED UFO high bay lighting

From $200

Product Overview

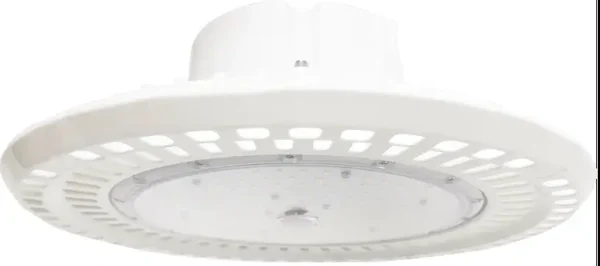

The Ledsion V5 UFO High bay LED Light is a high-performance lighting solution designed for commercial and industrial spaces. With its superior brightness, energy efficiency, and versatile design, this fixture is ideal for illuminating large areas from elevated heights. Available in multiple wattages and color temperatures, the V5 UFO High Bay lighting ensures consistent, high-quality lighting with exceptional longevity.



Key Features

– Multiple wattage options: 100W, 150W, 200W, and 240W

– High efficacy of 160 lm/W for all models

– Color temperature options: 3000K, 4000K, and 5000K

– 0-10V dimmable as standard

– Heavy die-cast aluminum alloy housing for durability

– High transparency PC cover with 120° beam angle

– Black or white housing options

– Operating temperature range: -36°C to +60°C

– Easy installation with unique hook for suspended mounting



Certifications and Compliance

– ETL Listed

– CETL Certified

– DLC Listed

Technical Specifications

– Input Voltage: 100-277V or 277-480V (HV models)

– Power Factor: >0.9

– CRI: >72

– Lumens Output:

  – 100W: 16,000 lm

  – 150W: 24,000 lm

  – 200W: 32,000 lm

  – 240W: 38,400 lm

– LED Chip: High Lumen Lumileds SMD 2835

– Light Distribution: 120° beam angle

– Junction Temperature: <75°C

– Lamp Efficiency: ≥90%



Applications

– Warehouses

– Manufacturing facilities

– Convention centers

– Sporting arenas

– Cold storage facilities

– Big-box retail stores

– Gymnasiums



Customization Options

– Optional occupancy sensor for automated control

– Emergency battery backup available (EMUFO-40170-YY)

– Dimming microwave motion sensor option (MS012HR-A)

– PC or aluminum reflector cover options

– 5ft cable option



Warranty

5-year limited warranty



Ordering Information

Use the following format to order:

LS-5EHB[Wattage][HV]-[Color Temperature]

Example: LS-5EHB100W-50K (100W, 5000K, 100-277V)

         LS-5EHB150WHV-40K (150W, 4000K, 277-480V)



Wattage options: 100W, 150W, 200W, 240W

Color temperature options: 30K (3000K), 40K (4000K), 50K (5000K)

HV for 277-480V models



Additional Information

– Equivalent to 200-800W MH/HPS fixtures, depending on wattage

– UL Listed LED drivers: ZHIHE Brand (100-277V) or Sosen Brand (277-480V)

– Available with a 5ft safety cord
