Proper tennis court lighting provides consistent visibility across the entire playing surface while helping players track the ball, judge speed and direction, and respond without excessive glare or distracting shadows. An effective lighting design depends on fixture optics, light levels, uniformity, pole height, pole placement, court layout, and control of spill light beyond the playing area.

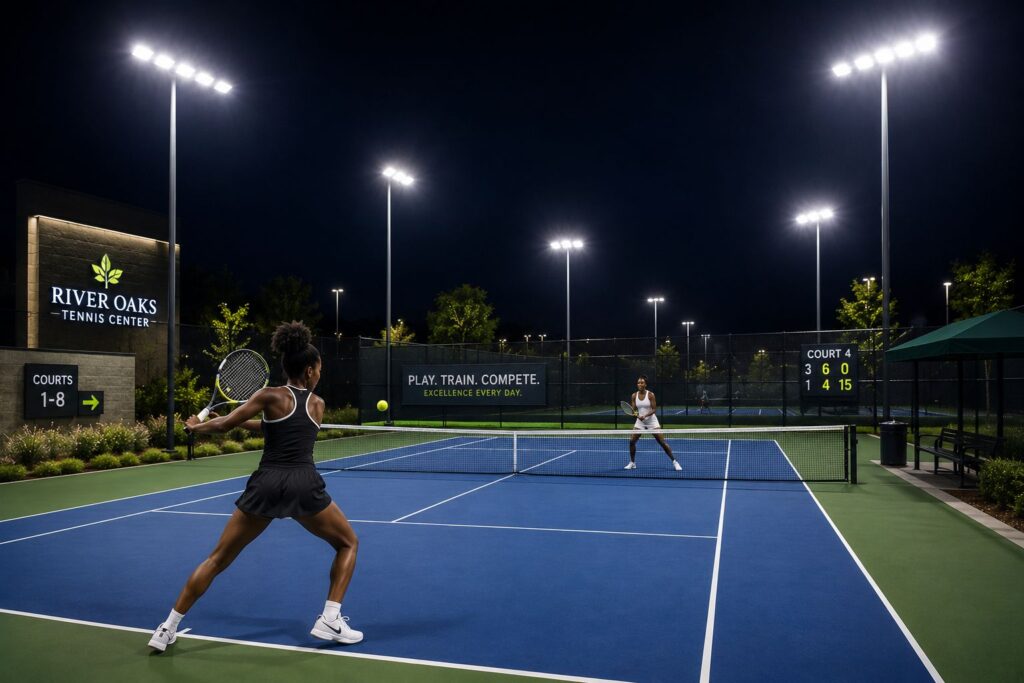

Outdoor LED tennis court lighting is used at schools, parks, recreation facilities, tennis clubs, resorts, HOAs, multifamily communities, gated residential developments, and private courts. Whether lighting a single court or a multi-court facility, the system should be designed around the dimensions and use of the courts rather than simply selecting fixtures by wattage or lumen output.
Outdoor tennis court lighting uses carefully positioned LED fixtures, poles, and controlled optics to provide uniform visibility across the playing surface while helping manage glare and spill light.
Need Help With a Tennis Court Lighting Project?
Tell us the number of courts, court dimensions, existing or planned pole locations and heights, voltage, and the level of play. We can help identify LED tennis court lighting fixtures, optics, and configurations for your project.
Request a Quote or call 844-533-7767.
Explore our Commercial LED Sports Lighting Fixtures.
What Is Tennis Court Lighting?
Tennis court lighting is a purpose-designed system that provides controlled, uniform illumination across the playing surface and the space above the court where players must continuously track a fast-moving ball. Effective lighting must provide adequate visibility while minimizing glare, harsh shadows, dark areas, and distracting light beyond the court.
Unlike general outdoor flood lighting, tennis court lighting requires careful coordination of fixture optics, aiming, pole height, pole placement, and court orientation. The goal is not simply to produce more light, but to distribute it effectively across the baseline, service boxes, net area, and surrounding playing zones.
LED tennis court lighting systems can be designed for individual courts or multi-court facilities at schools, parks, clubs, resorts, HOAs, multifamily communities, gated developments, and other recreational properties.
Tennis Court Lighting Design
A tennis court lighting design should provide balanced illumination across the playing surface while maintaining good visibility of the ball throughout its flight. Fixture placement, mounting height, beam distribution, aiming, and court geometry must work together to achieve adequate light levels and uniformity without creating excessive glare.
Important design factors include:
-
Court dimensions and number of courts: Single courts and multi-court facilities require different fixture and pole configurations.
-
Level of play: Recreational, club, school, collegiate, and competitive facilities may have different lighting performance requirements.
-
Pole locations: Poles should be positioned to provide effective coverage without interfering with play or creating unnecessary visual distractions.
-
Mounting height: Pole height influences beam reach, aiming angles, uniformity, and glare.
-
Fixture optics: Beam distributions should be selected for the actual court geometry and mounting positions.
-
Uniformity: Lighting should minimize excessively bright and dark areas across the playing surface.
-
Glare and spill light: Fixture selection and aiming should consider players, spectators, neighboring properties, roadways, and surrounding residences.
-
Photometric planning: A project-specific photometric layout can verify predicted light levels, uniformity, fixture quantities, and aiming before installation.
For HOAs, multifamily communities, clubs, schools, and other properties near residences, controlling spill light and glare can be particularly important because the courts may operate during evening hours close to homes and neighboring properties.
Tennis Court Lighting Layout
A tennis court lighting layout determines where poles and fixtures are positioned around the court to provide consistent illumination while limiting glare in the players’ primary lines of sight. The appropriate layout depends on the number of courts, available space, pole height, fixture optics, required light levels, and surrounding property conditions.
For a single outdoor court, lighting poles are typically positioned along the sides of the court rather than behind the baselines, where fixtures can interfere with a player’s view of the ball. Multi-court facilities may use shared pole locations and carefully selected optics to illuminate adjacent courts efficiently.
When planning the layout, consider:
-
Court orientation and dimensions: Establish the playing area and surrounding clear zones before locating poles.
-
Number of courts: Single, double, and multi-court complexes can require substantially different layouts.
-
Pole placement: Position poles to support uniform coverage while minimizing visual interference for players.
-
Fixture aiming: Direct light onto the intended playing surface while controlling glare and spill beyond the courts.
-
Surrounding properties: HOAs, multifamily communities, clubs, and residential developments may require particularly careful control of light near homes and property boundaries.
-
Photometric verification: Use a project-specific photometric layout to evaluate light levels, uniformity, fixture placement, and aiming before installation.
There is no single tennis court lighting layout that is appropriate for every project. Pole positions and fixture quantities should be determined from the actual court configuration and required lighting performance.
Tennis Court Lighting Pole Height
Tennis court light pole height affects fixture aiming, beam coverage, uniformity, and glare. Taller mounting heights can provide broader coverage and more favorable aiming angles, while lower mounting heights may require different optics, additional fixtures, or more careful glare control.
There is no single pole height that is correct for every tennis court. The appropriate height depends on the court layout, number of courts, fixture output and optics, required light levels, pole locations, surrounding properties, and level of play.
When evaluating tennis court lighting pole height, consider:
-
Single vs. multiple courts: Multi-court facilities may require different pole locations and mounting heights than individual courts.
-
Fixture optics and aiming: Pole height must work with the selected beam distributions to deliver light across the intended playing area.
-
Uniformity: Mounting height and fixture placement influence the balance between brighter and darker areas of the court.
-
Glare control: Poor combinations of mounting height and aiming can place high-intensity light within players’ lines of sight.
-
Spill light: Courts near homes, roads, or property boundaries may require tighter optical control and shielding.
-
Existing poles: Retrofit projects should verify pole height, condition, mounting configuration, and structural suitability before replacement fixtures are selected.
Pole height should therefore be evaluated as part of the complete tennis court lighting design rather than selected independently. A photometric analysis can help determine whether the proposed pole height, fixture locations, optics, and aiming will achieve the required performance.
Tennis Court Lighting Levels & Uniformity
Tennis court lighting levels should provide enough illumination for players to clearly see the ball, court lines, net, and surrounding playing area throughout a match. However, adequate average light levels alone do not guarantee good visibility. Uniformity across the court is also important.
A well-designed system minimizes large differences between bright and dark areas. Poor uniformity can make it more difficult for players to track the ball as it moves rapidly across different parts of the court.
The appropriate illumination level depends on several factors:
-
Level of play: Recreational, club, school, collegiate, and competitive tennis may require different lighting performance.
-
Indoor vs. outdoor courts: Each environment presents different mounting, reflection, and glare considerations.
-
Court configuration: Single courts and multi-court facilities may require different fixture quantities and distributions.
-
Spectator and event use: Facilities supporting organized competition may have greater lighting requirements than recreational courts.
-
Video or broadcast use: Higher-level events may require additional vertical illumination, color quality, and flicker performance.
-
Uniformity: Light should be distributed consistently across the playing surface rather than concentrated in isolated bright areas.
For outdoor courts, the lighting system should balance sufficient illumination and uniformity with glare and spill-light control. This is particularly important at HOAs, multifamily communities, clubs, resorts, and other facilities located near residences.
Project-specific lighting levels should ultimately be established according to the facility’s intended use and any applicable standards or governing requirements.
Tennis Court Lighting Requirements, Standards & Classifications
Tennis court lighting requirements vary according to the level of play, facility type, number of courts, spectator use, and applicable local requirements. A recreational court at an HOA or multifamily community does not necessarily require the same lighting performance as a school, tennis club, collegiate facility, or competition venue.
Lighting specifications may address:
-
Illumination levels: The amount of light delivered to the playing surface
-
Uniformity: The relationship between brighter and darker areas of the court
-
Glare control: Limiting direct glare that can interfere with a player’s view of the ball
-
Fixture placement and aiming: Positioning luminaires to provide effective court coverage
-
Spill light and light trespass: Controlling illumination beyond the intended court area
-
Color quality and flicker: Increasingly important for higher-level competition, video, and event applications
-
Controls: Allowing individual courts or groups of courts to be operated according to facility use
USTA, ASBA and IES Lighting Guidance
USTA Tennis Venue Services supports new tennis court lighting and lighting-upgrade projects and currently references American Sports Builders Association (ASBA) lighting classifications for these projects. Tennis facilities may be classified according to their intended level of play, so the appropriate lighting criteria should be established before fixtures and pole configurations are selected.
The Illuminating Engineering Society also publishes ANSI/IES RP-6, Recommended Practice: Lighting Sports and Recreational Areas, which addresses lighting considerations for different sports and levels of competition.
Local electrical codes, zoning requirements, environmental lighting ordinances, and property-specific restrictions may also affect an outdoor tennis court lighting project.
For courts near homes and property boundaries, glare and light trespass can be especially important. See our Sports Field Lighting Glare & Spill Light Control Guide for additional guidance on controlling unwanted light around outdoor athletic facilities.
Tennis Court Lighting Levels by Level of Play
Tennis court lighting requirements should be based on the level of play and applicable lighting classification, rather than assuming that every residential, school, club, or municipal court requires the same foot-candle level.
In general:
| Facility / Level of Play | Lighting Priority |
|---|---|
| Recreational & Community Courts | Comfortable visibility, uniformity, glare control and neighborhood compatibility |
| Schools, Clubs & Competitive Facilities | Higher performance requirements for illumination, uniformity and player visibility |
| Collegiate & Advanced Competition | More demanding lighting performance based on the applicable competition requirements |
| Tournament & Broadcast Venues | Project-specific criteria that may include vertical illumination, camera performance, flicker and additional lighting requirements |
USTA Tennis Venue Services currently references ASBA lighting classifications for tennis-court lighting projects, while the Illuminating Engineering Society publishes recommendations for sports and recreational lighting through ANSI/IES RP-6.
For a specific project, the target maintained illumination and uniformity should be established from the intended level of play and applicable requirements before the photometric design is completed.
Glare, Spill Light & Neighboring Properties
Glare and spill light are important considerations in outdoor tennis court lighting design because players frequently look upward while serving, returning lobs, and tracking the ball. Poor fixture placement or aiming can create uncomfortable glare and reduce visibility even when measured light levels on the court are adequate.
Light extending beyond the court can also affect neighboring properties, roadways, pedestrian areas, and other parts of the site. This can be particularly important for tennis courts at HOAs, multifamily communities, gated residential developments, resorts, and clubs where courts may be located close to residences.
Effective glare and spill-light control can include:
-
Precision fixture optics: Direct light toward the playing surface rather than broadly beyond the court.
-
Careful fixture aiming: Coordinate aiming angles with pole locations and mounting heights.
-
Shielding where appropriate: Additional optical control may help reduce unwanted light in sensitive directions.
-
Appropriate pole placement: Poor pole locations can require more aggressive aiming and increase glare or spill light.
-
Photometric analysis: Evaluate predicted illumination both on the courts and around property boundaries before installation.
-
Lighting controls: Scheduling and zoning can limit unnecessary operation when courts are not in use.
For a deeper look at these issues, see our Sports Field Lighting Glare & Spill Light Control Guide.
Properties combining tennis courts with parking, walkways, clubhouses, and other common areas should also consider how the court system coordinates with the site’s broader commercial lighting requirements.
Residential, HOA & Multifamily Tennis Court Lighting
Residential tennis court lighting can include private courts as well as shared facilities at HOAs, multifamily communities, gated developments, country clubs, and resorts. These projects often place courts closer to homes and property boundaries than larger athletic complexes.
Lighting design should therefore emphasize uniform court illumination while carefully controlling glare and spill light. Pole placement, fixture aiming, shielding, operating hours, and local lighting ordinances may all influence the final design.
For community properties, a photometric plan can help evaluate both court illumination and predicted light levels beyond the playing area before installation.
Indoor vs. Outdoor Tennis Court Lighting
Outdoor tennis court lighting must account for pole placement, weather exposure, glare, spill light, and neighboring properties. Indoor courts have different considerations, including ceiling height, fixture mounting, interior reflections, and visibility against the building structure.
Planning an indoor facility? See our Indoor Tennis Court Lighting Guide for indoor-specific lighting requirements and design considerations.
Power & CCT Selectable Tennis Court Fixtures
Power- and CCT-selectable LED sports lights can simplify tennis court projects by allowing contractors to configure fixture output and color temperature in the field rather than specifying a different luminaire for every application.
Available tennis court fixtures may provide selectable outputs such as 400W, 450W, and 500W, along with 3000K, 4000K, and 5000K color temperatures. This flexibility allows the same fixture platform to accommodate different pole heights, court configurations, light-level requirements, and project preferences.
Selectable fixtures can be particularly useful for clubs, schools, parks, HOAs, multifamily communities, and multi-court facilities where lighting requirements may vary across a property.
For a high-output option designed for outdoor courts, see the ACE Commercial Tennis Court Sports Light, featuring selectable power and CCT with output up to 78,000 lumens.
Tennis Court Lighting Mounting Options
Mounting hardware affects fixture positioning, aiming, installation, and retrofit compatibility. Depending on the pole or support structure, commercial tennis court lights may be available with several mounting options:
-
Slipfitter mounts: Provide adjustable aiming and are commonly used with round sports-lighting poles.
-
Yoke mounts: Attach to structural surfaces or crossarms and provide flexible fixture positioning.
-
Trunnion mounts: Allow precise angle adjustment for applications requiring controlled fixture aiming.
-
Tennis arm mounts: Purpose-designed for tennis court pole configurations, helping position fixtures correctly while providing a clean installation and convenient aiming adjustment.
For retrofit projects, the existing pole type, mounting configuration, fixture weight, and proposed aiming should be evaluated before selecting mounting hardware. New installations should coordinate the fixture mount with the pole and photometric design from the beginning.
Smart Controls for Tennis Court Lighting
Lighting controls allow tennis facilities to operate courts according to actual use rather than running the entire lighting system at full output throughout the evening.
Depending on the fixture and control system, options may include 0–10V dimming, scheduling, photocells, occupancy sensors, Bluetooth-enabled controls, and remote programming. Multi-court clubs, schools, parks, HOAs, and recreation facilities can also use zoning to operate individual courts or groups of courts independently.
Controls can reduce unnecessary operating hours and energy use while giving facility managers greater flexibility over court lighting schedules.
LED vs. Metal Halide Tennis Lighting
Many tennis facilities are replacing older metal halide systems with LED sports lighting, particularly when existing fixtures require frequent maintenance or no longer provide consistent illumination.
| Metal Halide | LED Tennis Court Lighting |
|---|---|
| Requires warm-up and restrike time | Instant-on operation |
| Lamps require periodic replacement | Reduced routine lamp maintenance |
| Light output depreciates as lamps age | More consistent output over service life |
| Limited control capabilities | Dimming, zoning and control options available |
| Older flood-style optics | Precision optical distributions available |
| Higher energy use for comparable applications | Potential for lower energy consumption |
For retrofit projects, existing pole height, pole condition, mounting, voltage, fixture weight, wind loading, and photometric performance should be evaluated before replacement fixtures are selected.
Tennis Court Lighting Poles & Structural Considerations
Tennis court lighting poles and foundations must support the proposed fixtures and withstand site-specific environmental loads. This is particularly important when adding or replacing high-output LED luminaires on existing poles.
Structural considerations may include:
-
Pole height and construction
-
Number, weight, and mounting position of fixtures
-
Fixture EPA (Effective Projected Area)
-
Local wind conditions
-
Foundation design and soil conditions
-
Applicable structural and building-code requirements
For retrofit projects, existing poles should be evaluated for the proposed fixture configuration rather than assuming that a pole supporting older lights is automatically suitable for new LED luminaires. New pole and foundation designs should be based on the actual equipment, site conditions, and applicable engineering requirements.
Common Outdoor Tennis Lighting Mistakes
Even high-output fixtures can perform poorly when the overall lighting system is not properly planned. Common mistakes include:
-
Selecting fixtures based primarily on wattage or lumen output
-
Using inappropriate pole heights or fixture locations
-
Poor fixture aiming
-
Ignoring glare and spill light
-
Skipping a project-specific photometric layout
-
Creating excessive bright and dark areas across the court
-
Overlooking wind loading and structural requirements
-
Failing to consider nearby homes and property boundaries
-
Replacing existing fixtures without evaluating poles, mounts, and electrical conditions
Addressing these factors during the design stage can improve court visibility, uniformity, glare control, and overall system performance.
Tennis Court Lighting Buyer Checklist
Before requesting a tennis court lighting proposal, gather as much of the following information as possible:
-
Number and dimensions of courts
-
Existing or proposed pole locations
-
Pole heights
-
Existing fixture information, if this is a retrofit
-
Electrical voltage
-
Intended level of play
-
HOA, municipal, or local lighting restrictions
-
Preferred color temperature, if specified
-
Site photographs
-
Property or site drawings, if available
For retrofit projects, photographs of the existing fixtures, poles, mounts, and electrical labels can also be helpful.
Providing this information allows us to evaluate fixture options and develop more accurate recommendations for the court layout and project requirements.
Buyer Q&A: Planning a Tennis Court Lighting Project
Q: Can you help determine which LED tennis court lights we need?
A: Yes. Provide the number and dimensions of the courts, pole locations and heights, voltage, intended level of play, and any existing fixture information. Site photographs or drawings are also helpful.
Q: Can existing tennis court poles be reused for an LED retrofit?
A: Often they can, but existing poles, mounts, fixture loads, wind-loading requirements, and electrical conditions should be evaluated before replacement fixtures are selected.
Q: Do we need a photometric layout before ordering fixtures?
A: A project-specific photometric layout is strongly recommended for most tennis court projects. It can verify fixture quantity, optics, aiming, predicted light levels, uniformity, and spill light before installation.
Q: Can you help with tennis courts near homes or residential properties?
A: Yes. For HOAs, multifamily communities, clubs, resorts, and other courts near residences, fixture optics, aiming, shielding, pole placement, and local lighting restrictions should be considered when developing the lighting plan.
Get Help With Your Tennis Court Lighting Project
Planning a new tennis court lighting system or upgrading existing fixtures? LED PROS WorldWide can help identify LED sports lighting fixtures and configurations based on your court layout, pole heights, existing equipment, level of play, and project requirements.
Send us your court dimensions, pole information, voltage, site photographs, drawings, or existing fixture details for review.
Request a Quote or call 844-533-7767 to discuss your tennis court lighting project.
Tennis Court Lighting FAQ
What is the best lighting for an outdoor tennis court?
LED sports lighting with controlled optics is commonly used for outdoor tennis courts because fixture output, beam distribution, aiming, and controls can be configured around the court layout, pole locations, and required lighting performance.
How high should tennis court light poles be?
There is no single correct tennis court light pole height. Mounting height depends on court configuration, pole locations, fixture optics, required light levels, glare control, and surrounding properties. Pole height should be evaluated as part of the complete lighting design.
How should tennis court lights be laid out?
Tennis court lights are generally positioned along the sides of the playing area rather than directly behind the baselines. The appropriate layout depends on whether the project has a single court or multiple courts, as well as pole height, fixture optics, aiming, and required uniformity.
How many foot-candles does a tennis court need?
Required illumination depends on the intended level of play and applicable lighting classification. Recreational and community courts may have different requirements from competitive, collegiate, tournament, or broadcast facilities. Target maintained illumination and uniformity should be established before the photometric design is completed.
How can glare and spill light be reduced around a tennis court?
Precision optics, appropriate pole placement and mounting height, careful fixture aiming, shielding, and photometric planning can help control glare and unwanted light beyond the court. This is particularly important for HOA, multifamily, club, and residential-development courts near homes.
Can existing tennis court lights be converted to LED?
Yes. Many older metal halide tennis court systems can be upgraded to LED. Existing poles, mounting hardware, electrical conditions, fixture loads, wind-loading requirements, and photometric performance should be evaluated before selecting replacement fixtures.
What color temperature is best for tennis court lighting?
The appropriate color temperature depends on the facility and project requirements. Commercial LED tennis court fixtures may offer selectable CCT options such as 3000K, 4000K, and 5000K, allowing the final setting to be matched to the application and desired nighttime appearance.
Stay Connected with Our Lighting Resources
Add IndustrialLightingFixtures.org as a Preferred Source on Google to see more of our lighting guides and technical resources across Google Search experiences.
Related Tennis Lighting Resources
-
Commercial LED Sports Lighting Fixtures — Explore LED sports lighting fixtures for tennis courts, athletic fields, stadiums, and sports facilities.
-
Indoor Tennis Court Lighting Guide — Lighting levels, fixture placement, and design considerations for indoor tennis facilities.
-
Sports Field Lighting Guide — Planning considerations for athletic field lighting, layouts, photometrics, poles, and system design.
-
Sports Field Lighting Glare & Spill Light Control Guide — Strategies for controlling glare, spill light, and light trespass around athletic facilities.
-
Sports Field Lighting Pole Height Guide — How mounting height and pole placement affect coverage, aiming, uniformity, and glare.
-
Sports Field LED Lighting Retrofit Guide — Planning LED upgrades using existing sports-lighting poles and infrastructure.
