Product Overview

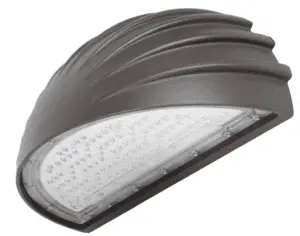

Illuminate your commercial spaces with the cutting-edge LED Football Full Cut-Off Wall Pack Series. This innovative lighting solution takes its name from its distinctive football-shaped design, blending form and function seamlessly. Engineered to excel in both indoor and outdoor settings, these fixtures redefine commercial lighting standards.
The series offers two powerful options: a 45W model for smaller areas and a robust 70W version for expansive spaces. Each fixture harnesses advanced LED technology to deliver bright, uniform illumination while significantly reducing energy consumption.
What sets this series apart is its full cut-off design. This feature ensures that light is directed precisely where it’s needed, minimizing light pollution and glare. It’s an ideal choice for businesses looking to balance powerful lighting with environmental considerations and energy efficiency.
Whether you’re lighting a warehouse, a parking lot, or an industrial facility, the LED Football Full Cut-Off Wall Pack Series offers a versatile, efficient, and long-lasting solution for your commercial lighting needs.
Key Features
– High-efficiency Lumileds LEDs for superior luminous output and longevity
– Wide input voltage range (AC120-277V) for flexible installation
– Advanced optics design for improved light utilization and uniformity
– Optional photocell control for automatic operation
– 1-10V dimming capability for customizable light levels
– Die-cast aluminum housing with efficient cooling design (LED Tj < 85°C)
– Full cut-off design to minimize light pollution and glare
Certifications and Compliance
– Wet location rated for outdoor use
– DLC listed (specific models, e.g., BWP45W27-50K and BWP07W27-50K)
Technical Specifications
– Wattage options: 45W and 70W
– Lumen output: 6300 lm (45W), 9446 lm (70W)
– Efficacy: 140 lm/W (45W), 135 lm/W (70W)
– Color temperature options: 4000K, 5000K
– CRI: 70
– Power factor: 0.95
– Driver efficiency: 90%
– Light angle: 81.3°
– Rated lifespan: 75,000 hours
– Operating temperature range: -22°F to 113°F
– Storage temperature range: -40°F to 176°F
Applications
– Mechanical and electronic processing workshops
– Storage warehouses
– Steel mills
– Gas stations
– Toll booths
– Waiting rooms
– Railway station platforms
– Indoor stadiums
Customization Options
– Color temperature selection (4000K or 5000K)
– Finish options: Dark Bronze, White, Black, or Silver
– Optional photocell integration for automatic on/off operation
Warranty
5-year limited warranty
Ordering Information
Use the following format to specify your desired configuration:
BWP [Wattage] [Voltage] [CCT] [Control] [Finish]
Example: BWP 07W 27 50K P D
– Wattage: 45W or 07W (70W)
– Voltage: 27 (AC120-277V)
– CCT: 40K (4000K) or 50K (5000K)
– Control: P (Photocell) or leave blank for standard
– Finish: D (Dark Bronze), W (White), B (Black), or S (Silver)
Additional Information
– Emergency backup options available (sold separately):
– 8W, 15W, and 20W emergency backup battery LED drivers
– Photocell switch (JL-413C, 120-277V) available as a separate accessory
– Detailed photometric data and IES files available upon request
