Heliport lighting systems combine multiple visual aids to help pilots identify a helicopter landing facility, recognize designated landing-area boundaries, evaluate wind direction, and maintain appropriate visual references during nighttime operations.
Depending on the heliport design and application, a lighting system may include TLOF perimeter lights, FATO lighting where applicable, approach or alignment guidance, an illuminated wind direction indicator, floodlighting, obstruction lighting, controls, and other specialized equipment.
The appropriate combination of components depends on the heliport type, facility layout, approach and departure paths, nighttime operating requirements, power source, environmental conditions, and applicable aviation or project requirements.
This guide explains the principal components of a heliport lighting system, what each component does, and how they work together at hospital, rooftop, commercial, industrial, offshore, and other helicopter landing facilities.
A heliport lighting system can combine perimeter lights, visual approach guidance, an illuminated wind direction indicator, floodlighting, controls, and other equipment appropriate to the facility.
Planning a Heliport Lighting System?
Need perimeter lights, TLOF or FATO lighting, approach guidance, an illuminated windsock, floodlights, controls, or other heliport lighting equipment?
Send us your heliport type, project location, TLOF and FATO configuration, required fixtures or aviation specifications when known, quantity, voltage, mounting requirements, controls, and project drawings or fixture schedules.
Explore Heliport Lighting | Request a Quote
Or call 844-533-7767 for project assistance.
Why Heliport Lighting Matters
Unlike conventional airports, many heliports operate in confined environments where pilots must navigate rooftop structures, nearby buildings, utility equipment, and urban obstacles.
Heliport lighting provides visual guidance that helps pilots:
- Identify landing areas
- Determine heliport boundaries
- Recognize wind conditions
- Avoid obstacles
- Improve landing accuracy
- Maintain orientation during low visibility
Without adequate lighting, helicopter operations become significantly more challenging, particularly during emergency flights and nighttime operations.

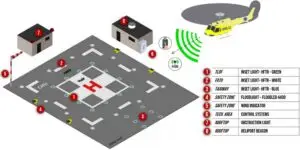

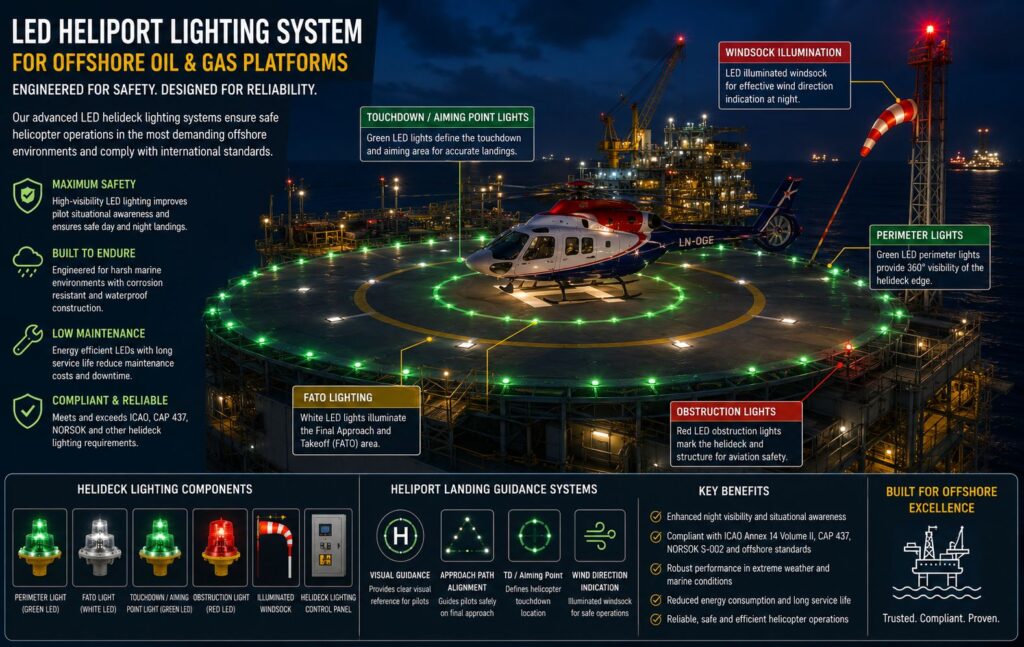

Components of a Heliport Lighting System
Modern heliport lighting systems typically include:
Perimeter Lights
Define heliport boundaries and improve landing area recognition.
TLOF Perimeter Lighting
Explain that the Touchdown and Liftoff Area is the load-bearing area where the helicopter lands or takes off, and perimeter lighting provides a visual indication of the applicable boundary during nighttime operations. For detailed FAA guidance covering TLOF lighting configurations, see FAA Heliport & Helipad Lighting Requirements.
FATO Lighting
Depending on the heliport design, lighting may also identify a load-bearing Final Approach and Takeoff Area (FATO). FATO perimeter lighting is not universally required and should not be assumed to use the same configuration as TLOF lighting.
Approach and Alignment Lighting
Approach and alignment lighting provides pilots with visual directional guidance when approaching or departing a heliport. Unlike perimeter lighting, which identifies the boundaries of a designated landing area, these lights help indicate an intended approach, departure, or alignment direction.
Illuminated Wind Direction Indicator
An illuminated windsock/wind cone provides a visual indication of wind direction and general local wind conditions during nighttime operations.
Obstruction Lighting
Nearby structures/equipment may require consideration depending upon the heliport environment and applicable requirements.
Windsock Lighting
Improve wind visibility during nighttime operations.
Floodlighting
Illuminate operational areas and surrounding infrastructure.
Power and Backup Power
Heliport lighting systems may use utility, battery, UPS, generator, or solar power depending on the facility, with backup power incorporated where required by the project’s operational and emergency-power requirements.
Control Systems
Provide centralized lighting management and monitoring.
Comparing heliport lighting systems? Explore Heliport Perimeter vs Approach Lights to understand the role of each visual aid.
How Heliport Lighting Components Work Together
A heliport lighting system should be considered as a coordinated set of visual aids rather than a collection of independent fixtures.
Perimeter lighting identifies the applicable landing-area boundary. Approach or alignment lighting can provide directional guidance where specified. The illuminated wind direction indicator communicates local wind direction. Floodlighting may supplement surface visibility. Controls coordinate applicable operating functions, while obstruction lighting addresses relevant nearby structures or equipment.
The appropriate combination depends on the facility design and operating requirements.
Heliport Lighting Systems by Facility Type
Hospital and Emergency Heliports
Night operations, emergency access, reliability, rooftop/ground configuration, project specifications.
Rooftop Heliports
Limited space, low-profile/inset equipment where appropriate, surrounding structures/equipment, glare, wind environment, maintenance access.
Commercial and Private Heliports
Operating schedule, TLOF/FATO configuration, approach/departure paths, power/control requirements.
Offshore and Industrial Helidecks
Environmental exposure, corrosion, ingress protection, hazardous-location requirements where applicable, maintenance accessibility.
How to Select a Heliport Lighting System
- Facility type
- Rooftop, ground-level or offshore installation
- TLOF and FATO configuration
- Load-bearing surfaces
- Approach/departure paths
- Nighttime operations
- Required perimeter/approach equipment
- Windsock requirements
- Floodlighting
- Obstruction-lighting considerations
- Voltage/power source
- Controls and monitoring
- Backup power requirements
- Elevated vs inset mounting
- Environmental conditions
- Applicable aviation requirements
- Project drawings/specifications
Inline Buyer Q&A
Q: Can you quote a complete heliport lighting system rather than individual fixtures?
Yes—depending on project requirements, the RFQ can include perimeter lights, visual-guidance equipment, an illuminated windsock, controls and other compatible equipment.
Q: I already have heliport drawings and a fixture schedule. What should I send?
Send the drawings, fixture schedule, specifications, required aviation fixture designations when known, quantities, voltage and mounting requirements.
Q: Can you help replace an existing heliport lighting system?
Send existing manufacturer/model information, photos, voltage, controls, mounting information and project requirements. Compatibility should be confirmed before selecting replacements.
Q: What information do you need if the system hasn’t been specified yet?
Facility type, project location, TLOF/FATO configuration, operating requirements, approach/departure information and available engineering or aviation documentation.
Q: Can the system include both inset and elevated fixtures?
Yes, depending on the heliport configuration and project requirements. Fixture mounting should be selected for the specific function and location.
Building or Upgrading a Heliport Lighting System?
Hospital heliports, emergency response facilities, offshore platforms, commercial landing areas, and private heliports require lighting systems designed to provide clear visual guidance during approach, landing, and departure.
We can help identify appropriate heliport perimeter lights, TLOF and FATO lighting, illuminated windsocks, floodlights, approach lighting, and complete LED heliport lighting systems for your application.
Send us your heliport type, project location, TLOF/FATO configuration, required fixture types or aviation designations when known, quantity, voltage, mounting requirements, windsock requirements, approach guidance, controls, environmental conditions, and project drawings or specifications.
Request a Quote / Or call 844-533-7767 to discuss the project.
FAQs About Heliport Lighting Systems
What components are included in a heliport lighting system?
A heliport lighting system may include TLOF perimeter lights, FATO lighting where applicable, approach or alignment lights, an illuminated wind direction indicator, floodlights, obstruction lights, controls, and power equipment. The specific combination depends on the heliport design, operating requirements, and applicable aviation or project specifications.
Are TLOF and FATO lights the same?
No. TLOF lighting identifies the Touchdown and Liftoff Area where the helicopter lands and takes off. FATO lighting, where used, identifies the Final Approach and Takeoff Area. The two areas serve different functions, and their lighting configurations should not be treated as interchangeable.
Does every heliport require approach lights?
No. Approach or alignment lighting is not required at every heliport. It may be used when additional directional guidance is appropriate for the facility’s approach or departure paths. The required configuration should be based on the heliport design and applicable aviation or project requirements.
Is an illuminated windsock part of a heliport lighting system?
Yes, for heliports intended for nighttime operations, an appropriately illuminated wind direction indicator or windsock provides pilots with a visible indication of wind direction and general local wind conditions. Windsock placement and illumination should be coordinated with the overall heliport design.
Can heliport lighting systems use both inset and elevated fixtures?
Yes. A heliport lighting system may incorporate inset, elevated, or a combination of fixture types depending on the lighting function, surface construction, fixture location, clearance requirements, and project design. The appropriate mounting method should be confirmed for each fixture location.
How are heliport lights controlled?
Heliport lighting controls vary by system and application. Depending on the project, controls may provide switching, intensity selection, day/night operation, pilot-controlled functions, or compatible system monitoring. Control equipment should be matched to the fixtures, power system, and specified operating requirements.
Can a heliport lighting system use solar power?
Yes. Solar-powered heliport lighting can be used for suitable remote, temporary, off-grid, or difficult-to-wire installations. System selection should account for the required lighting functions, operating schedule, local solar conditions, battery capacity, controls, environmental conditions, and applicable project requirements.
