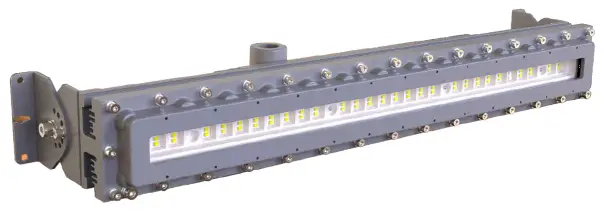

LN-02N, LED Linear, Class 1 Div 2 full-cutoff, fully shielded

From $300

Product Overview

The CES-EX-LN-02N Series LED Luminaires are high-performance, energy-efficient lighting solutions designed for hazardous locations. These luminaires offer a range of wattage options from 24W to 50W, delivering lumens ranging from 2,880 to 6,000. The CES-EX-LN-02N Series is available with two mounting options: ceiling mount and wall mounting, making it suitable for various industrial and commercial applications.


Key Features

– Range of wattage options: 24W (≥2,880lm) to 50W (≥6,000lm)

– Two mounting options: ceiling mount and wall mounting

– Wide optics for uniform illumination

– Entry size: 3/4″-14 NPT, M25 X1.5, or M26 X1.5

– Long-lasting performance with 50,000+ hours LED lifespan

– Die-cast aluminum housing for durability

– High transmittance tempered glass lens

– Available in color temperatures ranging from 3000K to 6500K

– CRI ≥70 for accurate color rendering


Certifications and Compliance

Class I, Division 2, Groups A, B, C, and D

– Suitable for damp and wet locations

– UL 844 and UL 1598 (US)

– CSA C22.2 No. 137 and CSA C22.2 No. 250.0 (Canada)

– IP66 rated for dust and water protection

Technical Specifications

– Operating temperature range: -40°C to +55°C (-40°F to 131°F)

– Input voltage: 100-277VAC, 50/60Hz

– 4kV standard surge protection (6kV optional)

– Maximum luminous beam angle: 90°

– Effective Projected Area (EPA): 0.61

– Power factor: >0.95

– LED color stability: Warrantied to shift no more than 200K in CCT over a 5-year period

– LED color uniformity follows ANSI C78.377-2017 guidelines



The CES-EX-LN-02N Series LED Luminaires are suitable for a wide range of hazardous location applications, including:

– Wastewater treatment plants

– Oil and gas refineries

– Drilling rigs

– Petrochemical facilities

– Food and beverage facilities

– Tunnels

– Outdoor wall and stanchion mounted general area lighting

– Areas where flammable vapors and gases are present


Customization Options

The CES-EX-LN-02N Series offers customization options to meet specific project requirements:

– Choice of wattage and lumen output

– Selection of color temperature (3000K to 6500K)

– Two mounting options: ceiling mount and wall mounting



CESP provides a 5 year limited warranty subject to all terms and conditions


Ordering Information

To order the CES-EX-LN-02N Series LED Luminaires, please refer to the product model table provided in the specification sheet. Contact CESP sales representatives for assistance in selecting the appropriate configuration for your project needs.
