LED Explosion-Proof Flood Lighting for Hazardous Industrial Areas
Explosion-Proof Flood Lighting Overview
LED explosion-proof flood lighting systems are high-output hazardous location luminaires engineered to provide broad-area illumination in environments where flammable gases, vapors, or combustible dust may be present. Designed for perimeter zones, tank farms, processing yards, and classified industrial facilities, these fixtures combine certified explosion-proof enclosures with precision optical control to deliver wide coverage without introducing ignition risks.
In hazardous exterior and large interior environments, flood lighting plays a critical role in maintaining operational visibility, security, and regulatory compliance.
Exterior perimeter illumination in hazardous settings is typically planned under the umbrella of explosion proof LED lighting solutions.
What Is LED Explosion-Proof Flood Lighting?
LED explosion-proof flood lighting refers to sealed, high-lumen luminaires designed to illuminate expansive areas within classified hazardous environments. These fixtures incorporate explosion-proof housings that contain internal electrical components while delivering broad, uniform light distribution across large horizontal zones.
Unlike standard commercial flood lights, hazardous-location flood fixtures are engineered to:
-
Prevent ignition of volatile atmospheres
-
Withstand corrosive, wet, or dusty conditions
-
Maintain performance under extreme temperatures
-
Provide controlled beam spreads for wide-area coverage
These systems operate as part of comprehensive explosion-proof LED lighting strategies for industrial facilities.
For a complete technical overview of hazardous location classifications, certification standards, and fixture selection methodology, refer to our Explosion-Proof Lighting Standards & Selection Guide.
WHERE EXPLOSION-PROOF FLOOD LIGHTING IS USED
Explosion-proof flood luminaires are specified when wide-area illumination is required inside or adjacent to classified hazardous zones.
Common applications include:
-
Tank farms and storage yards
-
Refinery processing perimeters
-
Petrochemical loading areas
-
Hazardous material transfer zones
-
Service roads near classified operations
-
Offshore platforms and marine terminals
-
Maintenance yards within Division-rated areas
Flood fixtures complement high bay and linear hazardous lighting by providing expansive horizontal coverage where shadow reduction and situational awareness are critical.
For high-ceiling classified environments, engineered LED explosion-proof high bay lighting fixtures provide broad distribution and reliable hazardous location protection.
CORE PERFORMANCE CHARACTERISTICS
When specifying explosion-proof flood lighting, consider:
-
Hazard classification (Class I Div 1 / Div 2 or Zone)
-
UL844, ATEX, or IECEx certification
-
High lumen output appropriate for mounting height
-
Optical distribution (wide, medium, or narrow beam)
-
CRI and CCT for task clarity
-
Corrosion-resistant housing materials
-
Thermal management under extreme ambient conditions
-
Adjustable mounting brackets for aiming flexibility
Selection is based on site geometry, mounting elevation, and hazardous classification — not wattage alone. For classified environments with intermittent exposure risks, certified Class 1 Division 2 hazardous location lighting provides appropriate containment without requiring Division 1-rated enclosures.
INDUSTRIAL APPLICATION CONTEXT
Explosion-proof flood lighting is widely deployed in:
-
Oil & gas facilities
-
Chemical processing plants
-
Grain handling terminals
-
Mining operations
-
Marine and offshore environments
-
Power generation plants
These fixtures improve:
-
Perimeter security visibility
-
Operational safety in large zones
-
Vehicle and pedestrian awareness
-
Compliance with hazardous location codes
Comparison Table — Explosion-Proof Fixtures by Application
| Attribute / Use | Flood Lighting | High Bay | Linear | Vapor-Tight |
|---|---|---|---|---|
| Primary Coverage | Wide, large area | High ceiling spaces | Continuous rows | Localized / service zones |
| Typical Mounting Height | 20–60 ft | 15–40 ft | 10–25 ft | 8–20 ft |
| Best Use Case | Perimeter & yard lighting | Warehouse & tall interiors | Aisles & conveyor lines | Low-mount utility areas |
| Optical Distribution | Very broad | Wide/Medium | Continuous / narrow | Diffuse / near field |
| Hazard Protection Needs | High exposure | High overhead | Continuous run contexts | Moisture & dust sealing |
| Example Environments | Storage yards, loading zones | Process halls | Equipment aisles | Maintenance corridors |
Available Explosion-Proof Flood Lighting Fixtures
Wide-area illumination strategies in hazardous environments often integrate multiple fixture formats. For example, perimeter coverage with explosion-proof flood lights can be coordinated with localized high bay or linear systems to create comprehensive facility lighting that meets both task and safety requirements.
A series
Brand:
Square Flood Light, Up to 56,000 lumens; Marine, Wet Locations; UL1598,UL844; Class I Div 2; Class 2 Div 1
60/80/100/150/200/
250/300/400W;
Prices start at $395.
B series
Brand:
Round Flood Light
Class 1 Div 2; Up to 42,000 lumens; Marine Locations;
40/60/80/100/150/
200/250/300/400W;
Prices start at $385.
UFO C series
Brand:
Round Flood Light; Class 1 Div 1; Up to 32,500 lumens; Surface, and pendant mount; 60/80/100/150/200/250W;
Prices start at $400.
D series
Brand:
Square Flood Light;
Up to 20,250 lumens;
Class 1 Div 1;
UL1598, UL844;
60/80/100/150W;
Prices start at $550.
G Series
Brand:
Wall, Pendant Mount, Spherical Glass, Diffuser with Wire Guard, Up to 5400 lumens; Class 1 Div 1; ETL: UL1598 / UL1598A / UL844 / 30/40W; Prices start at $385.
J Series
Brand: CESP
Class 1 Div 2; UL1598, UL1598A Marine; UL8750;
20/30/40/60/80/
100/120/150/185W;
Prices start at $300.
CES
Brand: Ledsion
Class I Div. 2 Square Flood Light; Tempered glass, Anti-glare; suitable for marine applications; 100/200W;
Prices start at $300.

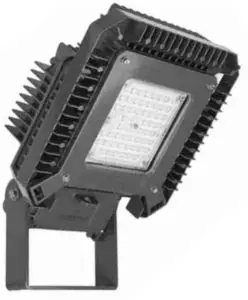

AMLG series
Brand IRL
Class 1 Div 2; Marine Outside Type (Salt Water); 70/110/150W;
Made in the USA;
Prices start at $900.
MV01
Brand: Venas
Portable Explosion Proof Lighting; Class I Div 1 remote area light; up to 1,600 lumens; providing up to 10 hours of run time, 15.4 pounds and completely collapsible; 10.8V(Battery) AC100V/277V(Charger);
Prices start at $800.
Frequently Asked Questions
What is the difference between explosion-proof flood lights and standard flood lights?
Explosion-proof flood lights are certified to contain internal ignition sources and are suitable for hazardous environments, whereas standard flood lights are not rated for classified locations.
What classifications are available?
Models are available for Class I Division 1, Class I Division 2, and equivalent ATEX/IECEx Zone environments.
How do I determine the correct beam angle?
Beam angle depends on mounting height, target coverage area, and overlap requirements to avoid dark zones.
Can explosion-proof flood lights be used outdoors?
Yes. These fixtures are engineered for harsh exterior environments and are commonly rated IP65 or higher for weather resistance.
Upgrade Legacy Hazardous Flood Lights with LED Technology
Reduce maintenance and improve energy efficiency in classified industrial spaces with certified explosion-proof LED flood lighting.
