NSF Certified LED Lighting vapor tight lowbays st vtxv

From $200

Product Overview

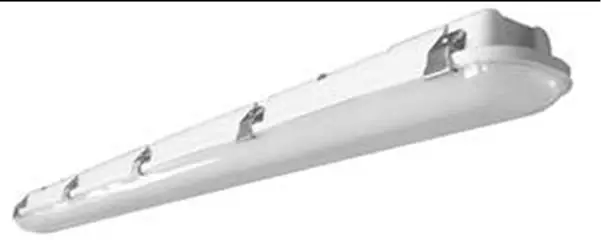

The ST-VTXV1 LED Vapor Tight Low Bay fixtures are cutting-edge illumination solutions that combine efficiency, durability, and versatility. These NSF-certified, low-profile luminaires are engineered to thrive in challenging environments where protection against moisture and dust is paramount.

Offered in three convenient lengths – 2ft, 4ft, and 8ft – these fixtures deliver exceptional light distribution while dramatically reducing energy consumption compared to conventional fluorescent systems.

The NSF Certified LED fixtures‘ robust design and superior performance make them ideal for a wide range of commercial and industrial applications, from food processing facilities to parking structures, ensuring reliable, high-quality lighting in even the most demanding settings.

Key Features

– Up to 60% energy savings over traditional fluorescent tubes and troffers

– High efficacy: 130-150 lm/W

– NSF certified and IP66 rated for moisture and dust resistance

– Vandal-resistant design

– Suitable for indoor and outdoor applications

– Low profile surface mount design

– 0-10V dimming capability

– Brackets included for direct ceiling installation

– Standard V-Hook included for versatile mounting options


Certifications and Compliance

– UL Listed

– DLC Premium Listed (2ft and 4ft models)

– DLC Standard Listed (8ft model)

– NSF Certified

– IP66 Rated

– RoHS Compliant

– NEMA 4X Compliant


Technical Specifications

– Lumens:

  – 2ft: 2620 lumens (20W)

  – 4ft: 6812 lumens (52W)

  – 8ft: 8450 lumens (65W)

– Color Temperature: Cool White (5000K)

– CRI: ≥80

– Beam Angle: 140°

– Operating Environment: -20°C to 40°C

– Voltage: 120-277VAC, 50/60 Hz

– Power Factor: >0.9

– Total Harmonic Distortion: ≤20%

– Housing: White Polycarbonate with Stainless Steel Latches


– Cold storage locations

– Food processing plants

– Parking structures

– Garages

– Warehouse aisles

– Commercial and retail spaces

– Indoor and outdoor environments where moisture or dust may be present


Customization Options

– Length options: 2ft, 4ft, 8ft

– Mounting options: Standard V-Hook (included) or Surface Mounting



5-year standard limited warranty


Ordering Information

Use the following format to specify your desired configuration:

ST-[Model]-[Color Temp]-[Options]

Example: ST-VT4V1-52W-CW-SM

– Model:

  – VT2V1-20W (2ft, 20W)

  – VT4V1-52W (4ft, 52W)

  – VT8V1-65W (8ft, 65W)

– Color Temp: CW (Cool White, 5000K)

– Options: SM (Surface Mounting)

Note: Standard V-Hook is included with all models.
