Commercial Light Poles feature outdoor lighting poles for functional and decorative poles for roadway, parking lot and area lighting. We offer commercial light poles in square, round, and round tapered varieties in pole heights up to 40 feet and available in steel and aluminum series;

Steel commercial light poles in Square Straight Steel, Round Steel and Round Tapered Steel. Aluminum  commercial light poles in Square Straight Aluminum, Round Aluminum, Round Tapered Aluminum. Presenting outdoor light poles, parking lot light poles and street light poles from AV Poles and Lighting.

Whether it is steel or aluminum, contemporary or traditional, new or custom fabrication, AV Poles and Lighting has a solution for your every need. All designs, engineering, tooling, and fabrications are done in house and the warehouse is always in stock with anchor bolts and templates for same day shipment. Decorative light poles and base covers

Steel Pole Specifications

SHAFT: Commercial-quality, hot-rolled, carbon steel tubing with a minimum yield strength of 48,000 PSI, conforms to ASTM A500 grade A.

ANCHOR BASE: Fabricated from hot-rolled carbon steel plate conforming to ASTM A36 meets or exceeds minimum yield  strength of 36,000 PSI. All welds shall conform to AWS D1.1. Base plate and shaft is circumferentially welded top and bottom.

ANCHOR BOLTS: Fabricated from hot-rolled carbon steel bar with minimum yield strength of 55,000 PSI. Bolt are fully galvanized and conform to ASTM-F1554 A55. Each bolt is furnished with two hex nuts and two flat washers.

BASE BOLT COVER: Two-piece standard full base cover is fabricated from heavy gauge quality carbon steel and pretreated with corrosion inhibitors. Provided with S304 stainless steel hardware. Spun and cast aluminum
covers are available.

GROUNDING: Provision; 3/8-16 Threaded stud welded to inner shaft wall opposite hand hole. Flat washer and hex nut provided.

HAND HOLE: Reinforced 3″ x 5″ hand hole is located 18″ above base. Cover and attachment hardware provided.

HARDWARE: S304 stainless steel

TOP CAP: Removable top cap provided with drill-mount poles

FINISH: TGIC thermoset polyester powder coat finish is electrostatically applied at a 3.0 mil nominal thickness. A five stage metal pretreatment process and sealer provide maximum corrosion resistance. The powder top coat is baked in excess of 400 degrees for supreme endurance.

ALUMINUM POLE SPECIFICATIONS:

SHAFT: One-piece extruded 6063-T6 aluminum alloy tube treated T6 temper. Available in .125, .188, .226 and .250 wall thickness.

ANCHOR BASE: Cast from A356 aluminum alloy and heat treated to T6 temper. Base plate and shaft are circumferentially welded top and bottom. The anchor base is provided with slotted holes.

ANCHOR BOLTS: Fabricated from carbon steel bar with minimum-yield. Strength of 55,000 PSI. Galvanized, per ASTM A-153. Each anchor bolt is furnished with two hex nuts and two flat washers.

BASE BOLT COVER: Two-piece standard full base cover is fabricated from heavy gauge quality carbon steel and pretreated with corrosion inhibitors. Provided with S304 stainless steel hardware. Spun and cast aluminum
covers are available

GROUNDING: Provision; 3/8-16 Threaded stud welded to inner shaft wall opposite hand hole. Flat washer and hex nut provided.

HAND HOLE: Reinforced 3″ x 5″ hand hole is located 18″ above base. Cover and attachment hardware provided. Location at 90 deg. from drilling.

HARDWARE: S304 stainless steel

TOP CAP: Removable top cap provided with drill-mount poles.

FINISH: TGIC thermoset polyester powder coat finish is electrostatically applied at a 3.0 mil nominal thickness. A five stage metal pretreatment process and sealer provide maximum corrosion resistance. The powder top coat is baked in excess of 400 degrees for supreme endurance.

Are you looking for a commercial light pole for your new or retrofit lighting project?. Call sales toll free 1-844-LED PROS (1-844-533-7767)

Commercial Light Poles

commercial light poles

Steel Commercial Light Poles

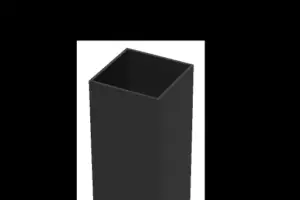

SQUARE STRAIGHT STEEL SERIES

AVPL-SSS – 4″ SQUARE STRAIGHT STEEL SERIES 11 GA

AVPL-SSS – 4″ SQUARE STRAIGHT STEEL SERIES 7 GA

AVPL-SSS – 5″ SQUARE STRAIGHT STEEL SERIES 11 GA

AVPL-SSS – 5″ SQUARE STRAIGHT STEEL SERIES 7 GA

AVPL-SSS – 6″ SQUARE STRAIGHT STEEL SERIES 7 GA



ROUND STEEL SERIES

AVPL-RSS – 4″ ROUND STRAIGHT STEEL SERIES 11 GA

AVPL-RSS – 4″ ROUND STRAIGHT STEEL SERIES 7 GA

AVPL-RSS – 5″ ROUND STRAIGHT STEEL SERIES 11 GA

AVPL-RSS – 5″ ROUND STRAIGHT STEEL SERIES 7 GA

AVPL-RSS – 6″ ROUND STRAIGHT STEEL SERIES 7 GA



ROUND TAPERED STEEL SERIES

AVPL-RTS – ROUND TAPERED STEEL SERIES(0-30FT)11 GA

AVPL-RTS – ROUND TAPERED STEEL SERIES(0-30FT) 7 GA

AVPL-RTS – ROUND TAPERED STEEL SERIES(35-40FT) 11 GA

AVPL-RTS – ROUND TAPERED STEEL SERIES(35-40FT) 7 GA



Aluminum Commercial Light Poles

SQUARE STRAIGHT ALUMINUM SERIES

AVPL-SSA – 4″ SQUARE STRAIGHT ALUMINUM SERIES .125 WALL

AVPL-SSA – 4″ SQUARE STRAIGHT ALUMINUM SERIES .188 WALL

AVPL-SSA – 5″ SQUARE STRAIGHT ALUMINUM SERIES .125 WALL

AVPL-SSA – 5″ SQUARE STRAIGHT ALUMINUM SERIES .188 WALL

AVPL-SSA – 6″ SQUARE STRAIGHT ALUMINUM SERIES .188 WALL

AVPL-SSA – 6″ SQUARE STRAIGHT ALUMINUM SERIES .250 WALL

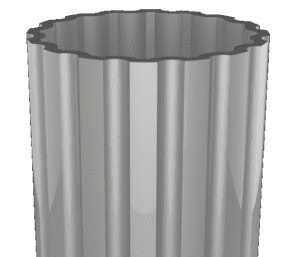

ROUND ALUMINUM SERIES

AVPL-RSA – 4″ ROUND STRAIGHT ALUMINUM SERIES .125 WALL

AVPL-RSA – 5″ ROUND STRAIGHT ALUMINUM SERIES .125 WALL

AVPL-RSA – 5″ ROUND STRAIGHT ALUMINUM SERIES .188 WALL

AVPL-RSA – 6″ ROUND STRAIGHT ALUMINUM SERIES .250 WALL



ROUND TAPERED ALUMINUM SERIES

AVPL-RTA – ROUND TAPERED ALUMINUM SERIES(16T) .125 WALL

AVPL-RTA – ROUND TAPERED ALUMINUM SERIES(0-18FT) .188 WALL

AVPL-RTA – ROUND TAPERED ALUMINUM SERIES(16-18FT) .188 WALL

AVPL-RTA – ROUND TAPERED ALUMINUM SERIES(20-40FT) .250 WALL

These commercial grade lighting poles and fixtures are USA made steel and aluminum poles, arms, and accessories. Poles and towers are designed to meet or exceed the needs of local, regional and country design codes.

Standard colors and finishes; DBZ (dark bronze) BLK (black) WHT (white) GRY (grey) GRN (green) ANOD (anodized). Other colors and finishes are available. Order lead times vary depending on options selected.

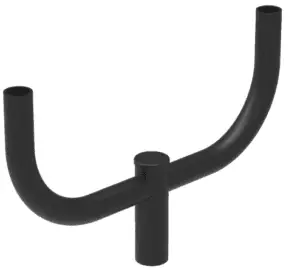

Mounting options;choose from 1 @ 90 degree,2 @ 180 degree, 2 @ 90 degree, 3 @ 90 degree, or 4 @ 90 degree. Specify tenon and arm style.

After making your selection, please call sales toll free 1-844-LED PROS (1-844-533-7767) for pricing & availability or complete the following contact form for immediate assistance.
