From $300
Product Overview

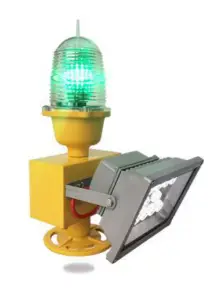

The AH-HP-D Heliport Directional Arrow is an advanced dual-function LED lighting system designed for heliports and helipads. Manufactured by Anhang Technology, this versatile unit combines perimeter lighting and floodlighting in one compact device. It provides critical visual guidance for helicopter pilots during approach, landing, and ground operations, enhancing safety and operational efficiency in various lighting conditions.
Key Features
– Dual functionality: Perimeter lighting and floodlighting in one unit
– High-intensity LED light source for both functions
– 360-degree horizontal output for perimeter lighting
– ≥10-degree vertical divergence for improved visibility
– Energy-efficient design consuming 95% less power than equivalent incandescent lights
– Durable construction with UV-protected polycarbonate lens and powder-coated die-cast aluminum base
– IP65 waterproof rating for all-weather performance
– Frangible coupling design to minimize potential damage to helicopters
– 24-hour continuous operation capability
– Long LED lifespan of over 100,000 hours
Certifications and Compliance
– ICAO Annex 14 Volume II Heliports 5.3
– FAA AC 150/5390-2B Heliport Design Guide
– CAP 437 compliant
Technical Specifications
– Light Source: LED
– Perimeter Light Colors: Green, Yellow, White, Red, Blue
– Perimeter Light Intensity: ≥50cd
– Flood Light Color: White
– Operating Voltage: DC (12-48VDC) or AC (110-240VAC)
– Power Consumption: 20W
– Dimensions: 245 × 180 × 385 mm
– Weight: 3 kg
– Mounting: 93 × 93 × 12 mm
– Operating Temperature Range: -55°C to 70°C
– Humidity Tolerance: 10% to 90%
– Wind Speed Resistance: Up to 80 m/s
Applications
– Helipad/Heliport FATO (Final Approach and Take-Off) areas
– Helipad runways
– Helipad taxiways
– Edge marking for approach and take-off areas
– General heliport illumination
Customization Options
– Choice of perimeter light colors (Green, Yellow, White, Red, Blue)
– VHF pilot-to-ground remote control integration
– Power supply controller for remote on/off functionality
– Custom powder-coated color options for the base
Warranty
Anhang Technology offers a comprehensive warranty covering manufacturing defects and performance issues for the AH-HP-D Heliport Directional Arrow. The product has an average life expectancy of 5 years under normal operating conditions.
Ordering Information
When ordering, please specify your desired configuration, including perimeter light color, power supply type, and any additional customization requirements.
Installation and Support
Our team of experts is available to provide guidance on proper installation and maintenance of the AH-HP-D Heliport Directional Arrow. We offer comprehensive technical support to ensure optimal performance and longevity of your lighting system.
Safety Features
The AH-HP-D incorporates several safety-enhancing features:
– Frangible coupling to reduce potential damage in case of accidental contact
– High-visibility powder-coated base for improved daytime recognition
– Integrated circuit protection
Environmental Considerations
With its energy-efficient LED technology and durable construction, the AH-HP-D Heliport Directional Arrow offers a sustainable lighting solution that reduces energy consumption and minimizes maintenance requirements.
Compatibility
The AH-HP-D is designed to integrate seamlessly with existing heliport lighting systems and can be easily incorporated into new or upgraded facilities.
By choosing the AH-HP-D Heliport Directional Arrow, you’re investing in a versatile, efficient, and compliant lighting solution that meets the highest industry standards for heliport safety and operations. Its dual functionality as both a perimeter light and floodlight makes it an ideal choice for heliports looking to optimize their lighting infrastructure while ensuring clear visual guidance for pilots during all phases of helicopter operations.
